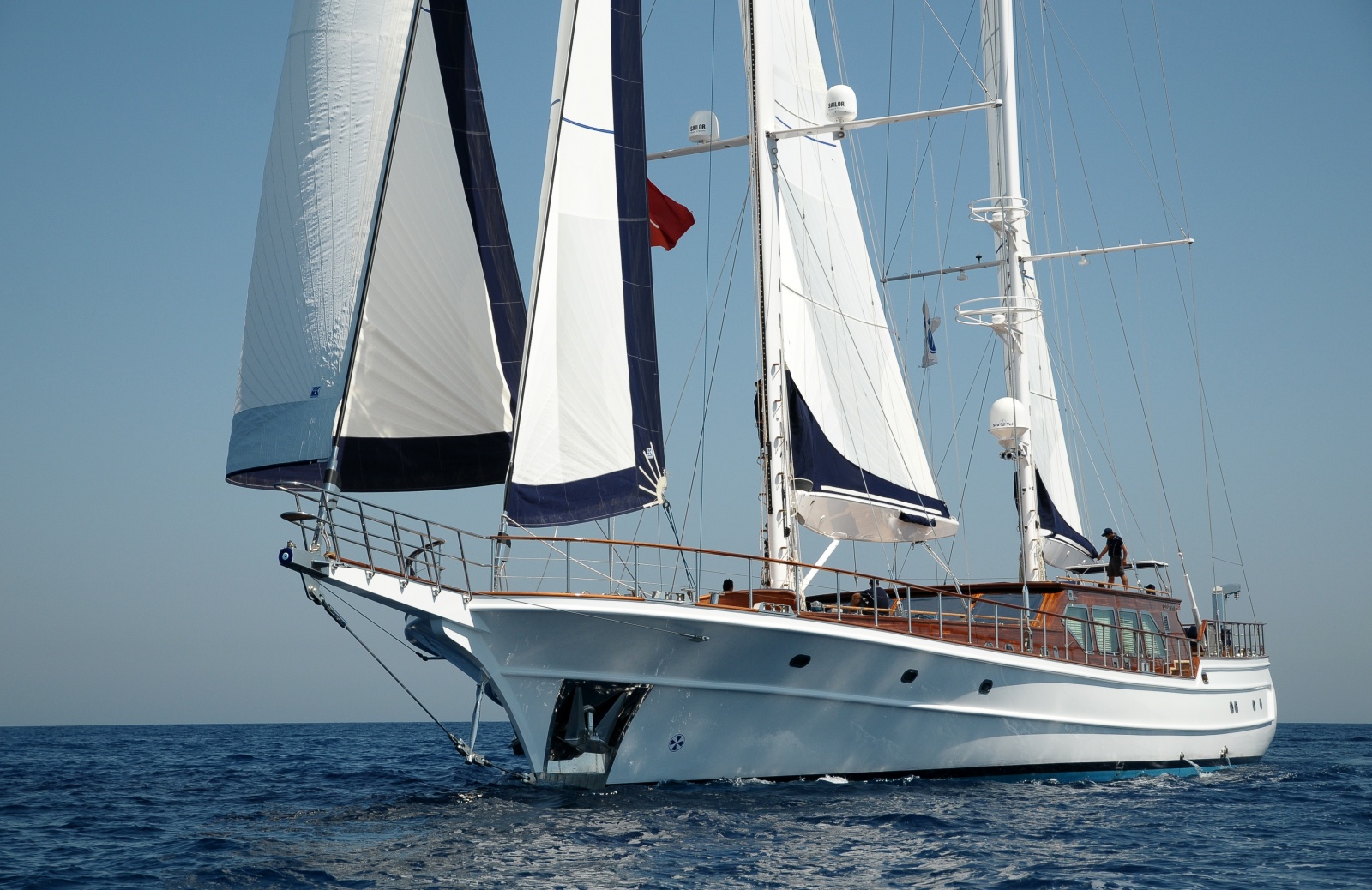

SG7137 – PAX NAVI YACHTS
SG7137
| ₺ |
|---|
| Type | Sailing |
|---|---|
|
Length Overall (LOA) |
43.13 m |
|
Beam |
9 m |
|
Draft |
3.99 m |
|
Built Year |
20100712 |
|
Flag |
Maltese |
|
Hull Material |
Steel |
|
Deck Material |
Teak |
|
Notes |
|
Specifications
|
Tonnage / Displacement |
317 t |
Design |
Erkin Yagcı |

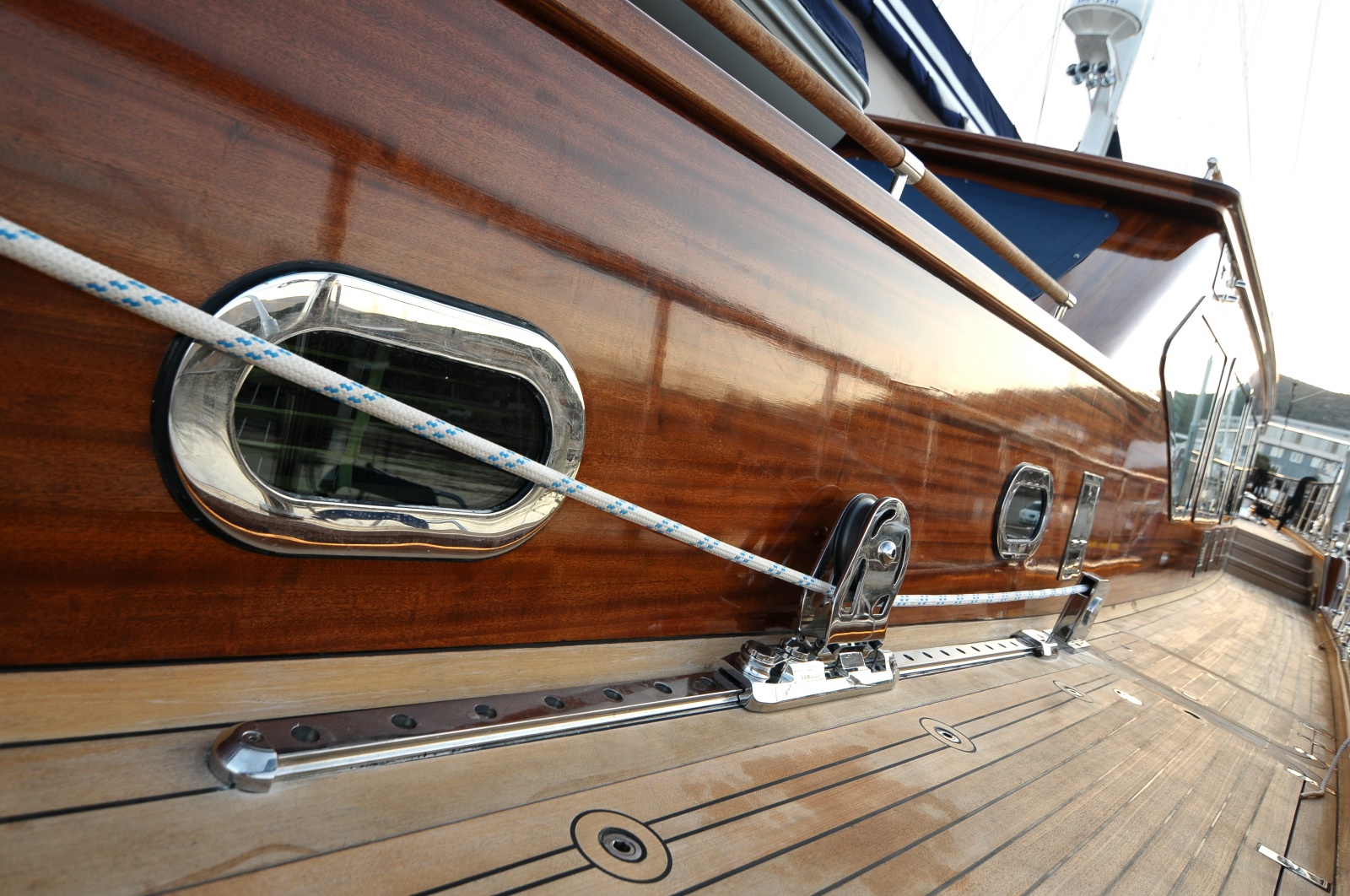

Deck |
Teak |
|
Internal Design |
|
Keel |
|
Hull Type |
|
|
Weight |
|
L.W.L. |
35.42 |
Other |
|
Tankage
|
Fuel Capacity |
25870 lt |
Water Capacity |
6040 lt |
Holding Tanks |
|
|
Other |
|

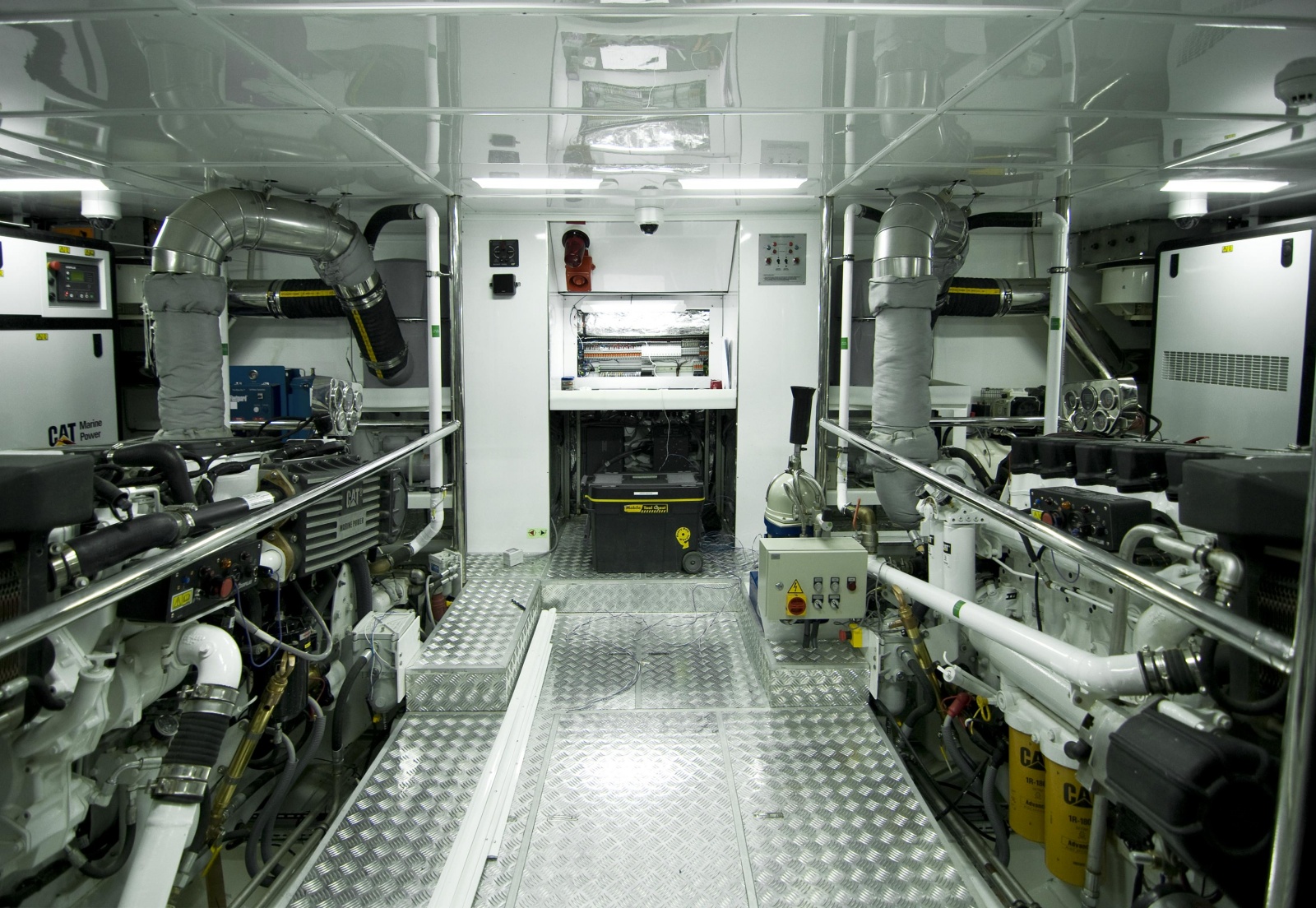

Engine & Machinery
|
Engine Type |
CAT C18 |
Engine Power |
2 x 671 hp |
Engine Date |
2010 |
|
No of Hours |
@ 3450 hrs (01.10.2014) |
Overhaul |
5060 Hrs ( 17.04.2014 ) |
Consumption |
100lt/hr (At Cruising) |
|
Range |
3510 nm |
Speed |
9 Knts Cruising - 13.5 Max Speed |
Water Maker |
2 x Searecovery Aquawhisper 1800-2 (2x300lt per hour) |
|
Battery Charger |
|
Steering |
Hydralic |
Steering |
Hydralic |
|
Generator |
2 x 69 KW CAT (8158 hrs Port generator--8115 hrs Stb Generator) |
Inverter |
|
Bowthruster |
American Bowtruster |
|
E&M1 |
|
E&M2 |
|
E&M3 |
|
|
Sternthruster |
|
Converter |
|
Propulsion/Propeller |
2 x 5 Blade Propeller |
|
Trim Tabs |
|
Water Heater |
|
Stabilizer |
|
|
Gearbox |
|
Other |
|

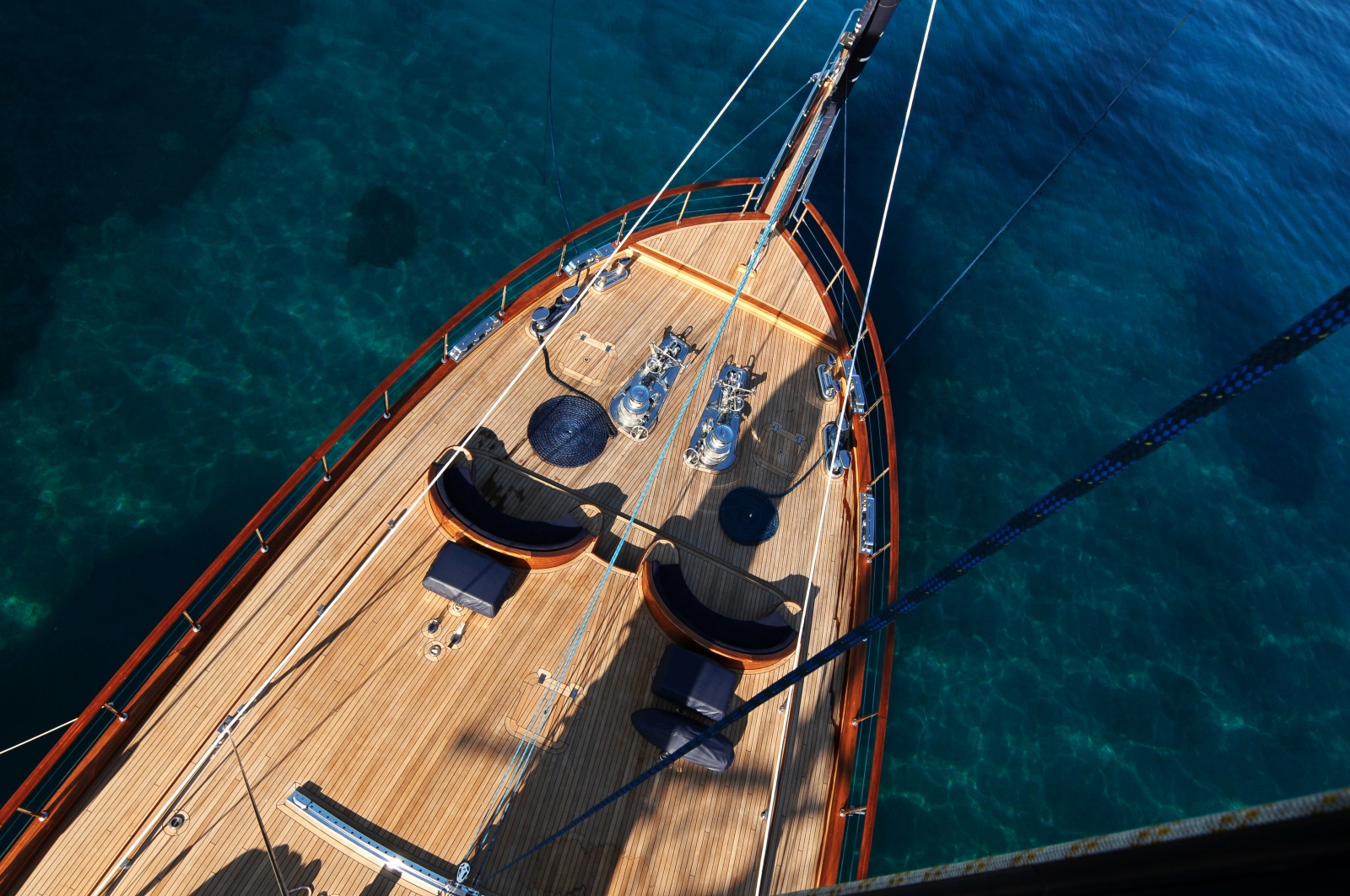

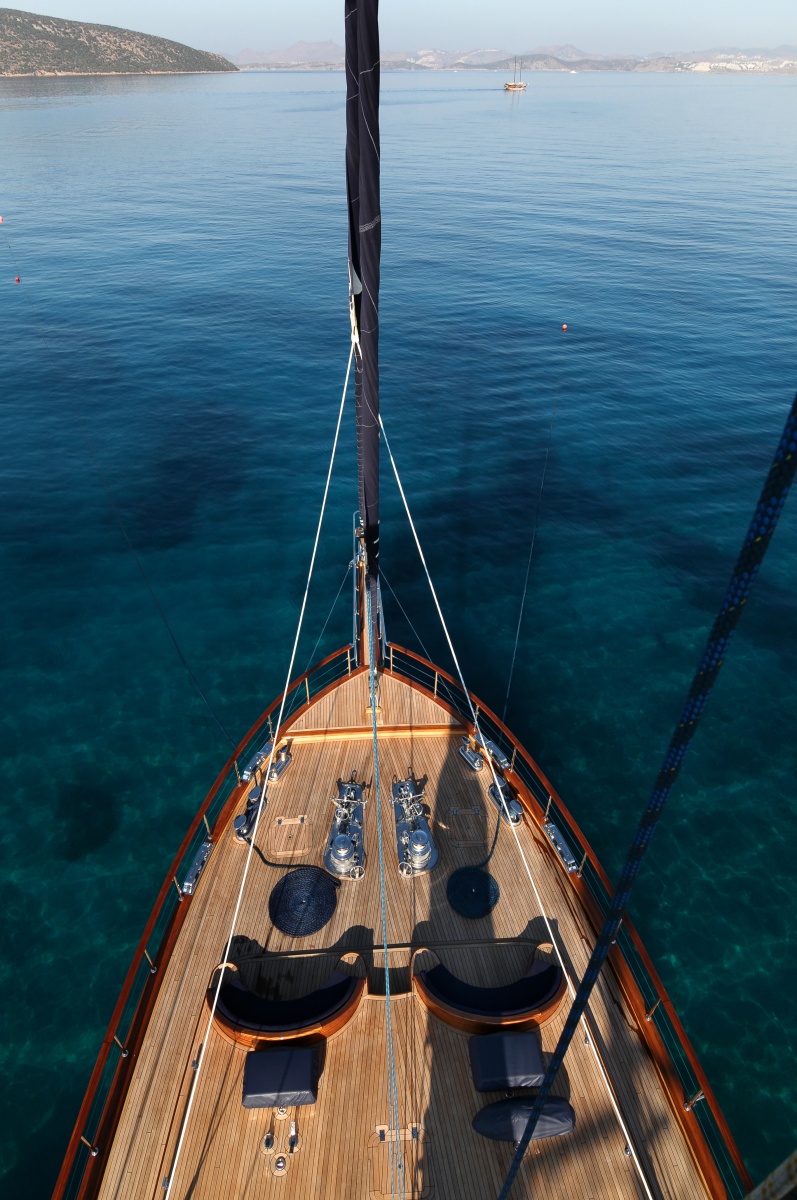

Deck & Safety
|
Chain |
|
Windlass |
2 x Data (Remote Control) |

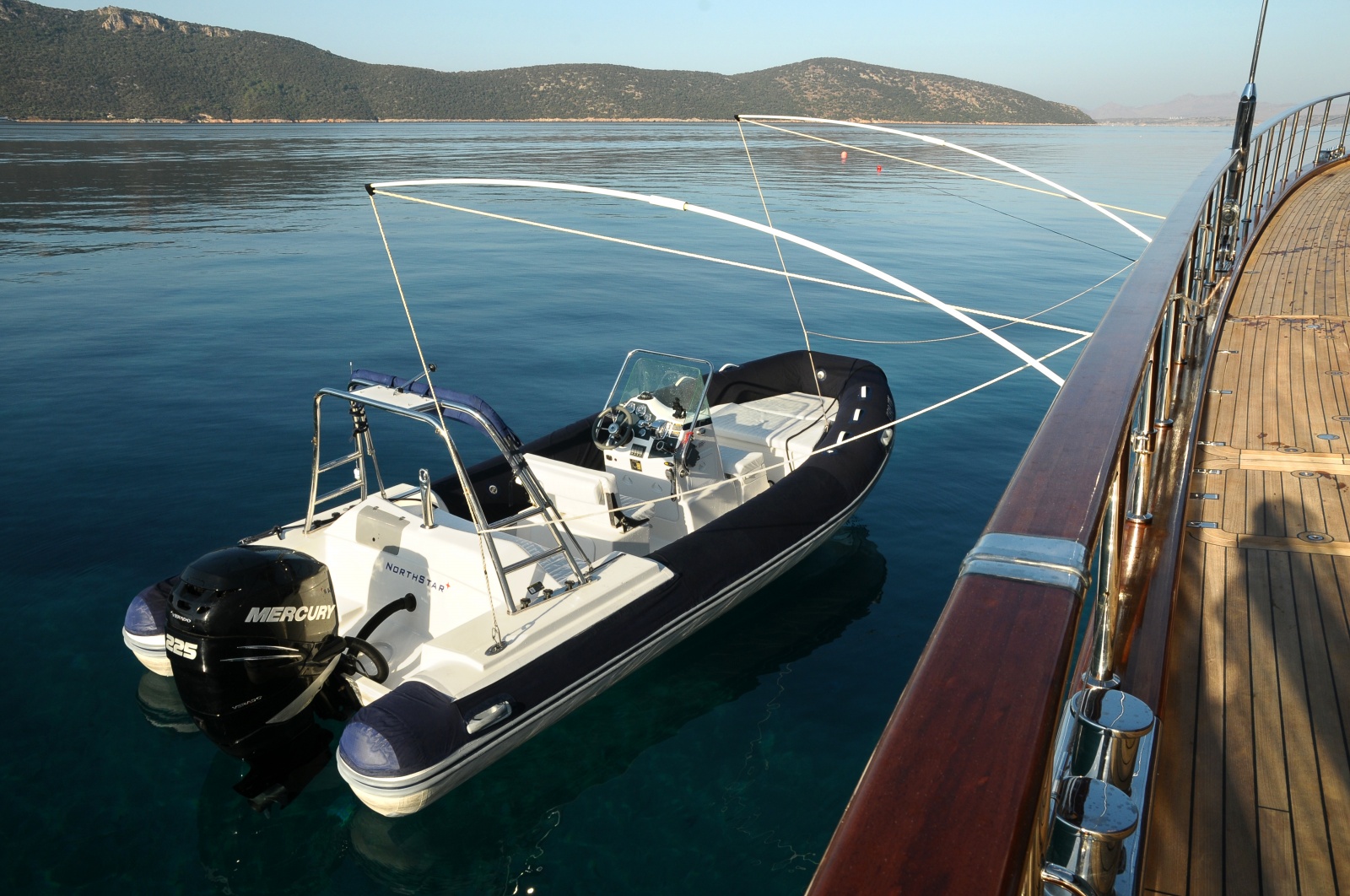

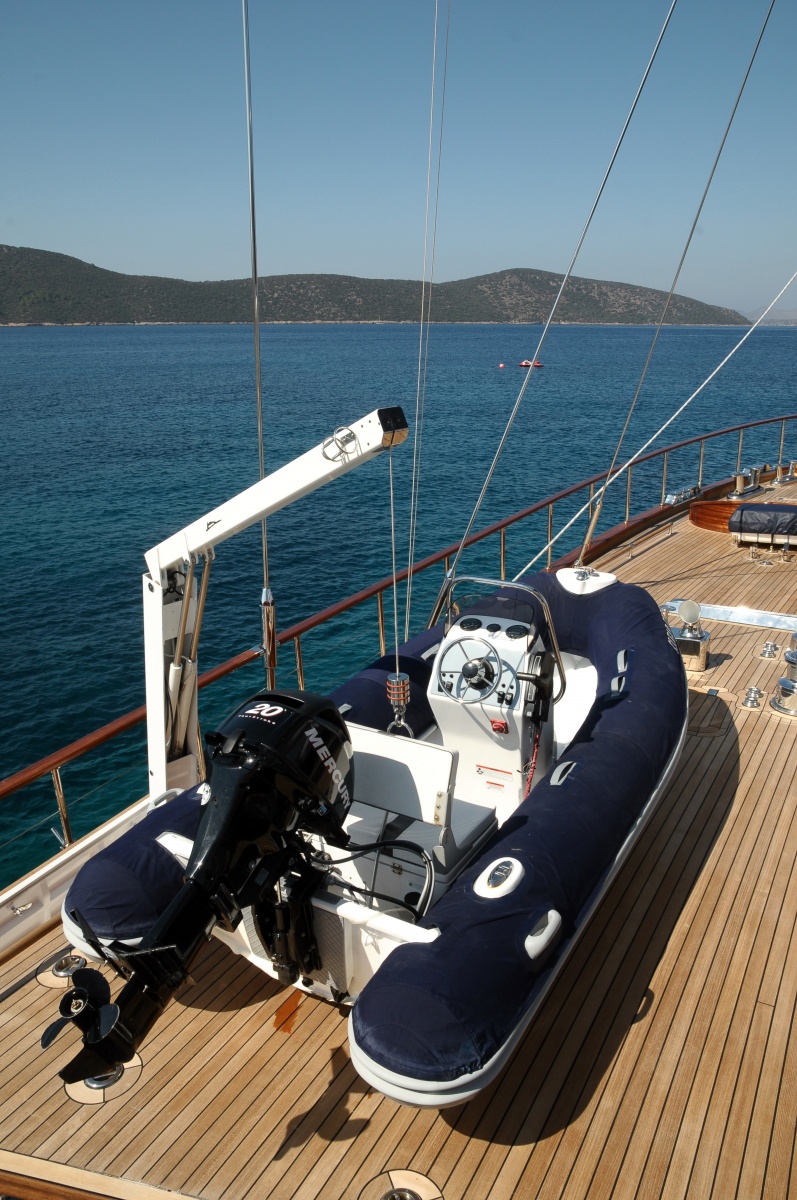

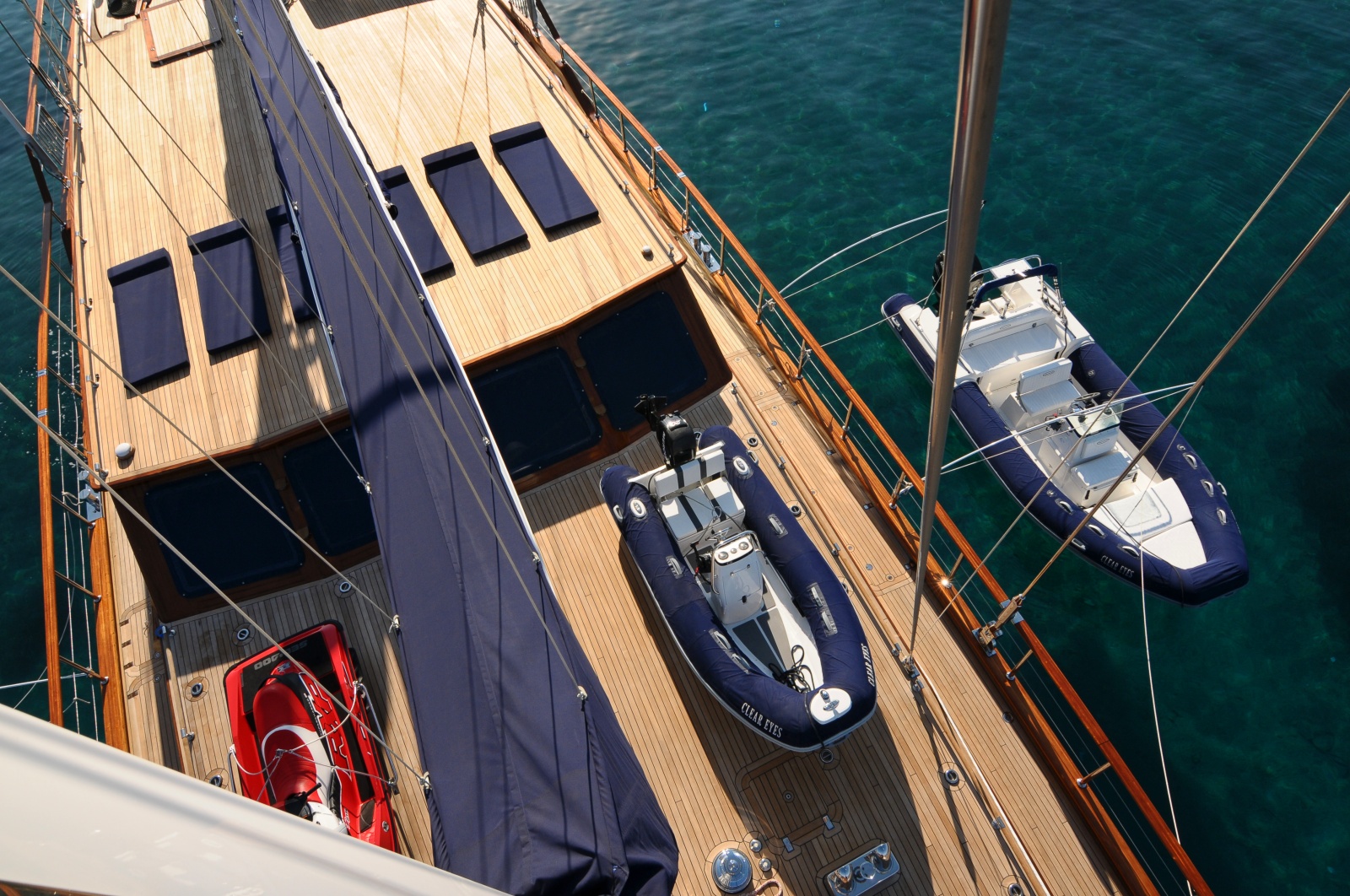

Dinghy |
|
|
Outboard |
Mercury (225 hp) |
Fire Exting. |
Yes (in Engine room fire fighting : Novec) (Cabins fire Fighting : Ultrafog) |
Life Raft |
Yes |
|
Life Jacket |
Yes |

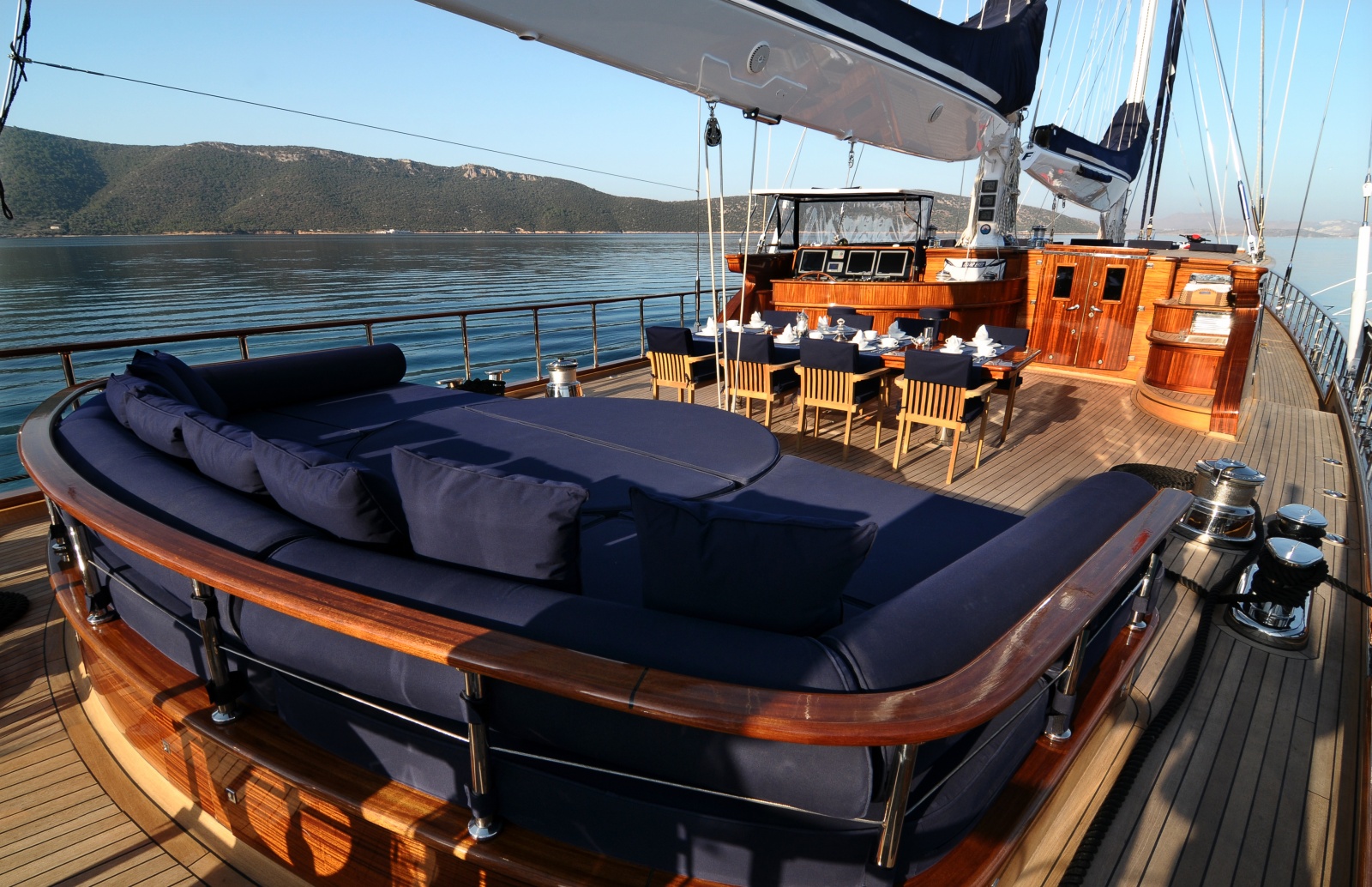

Sun Awning |
On All Deck |

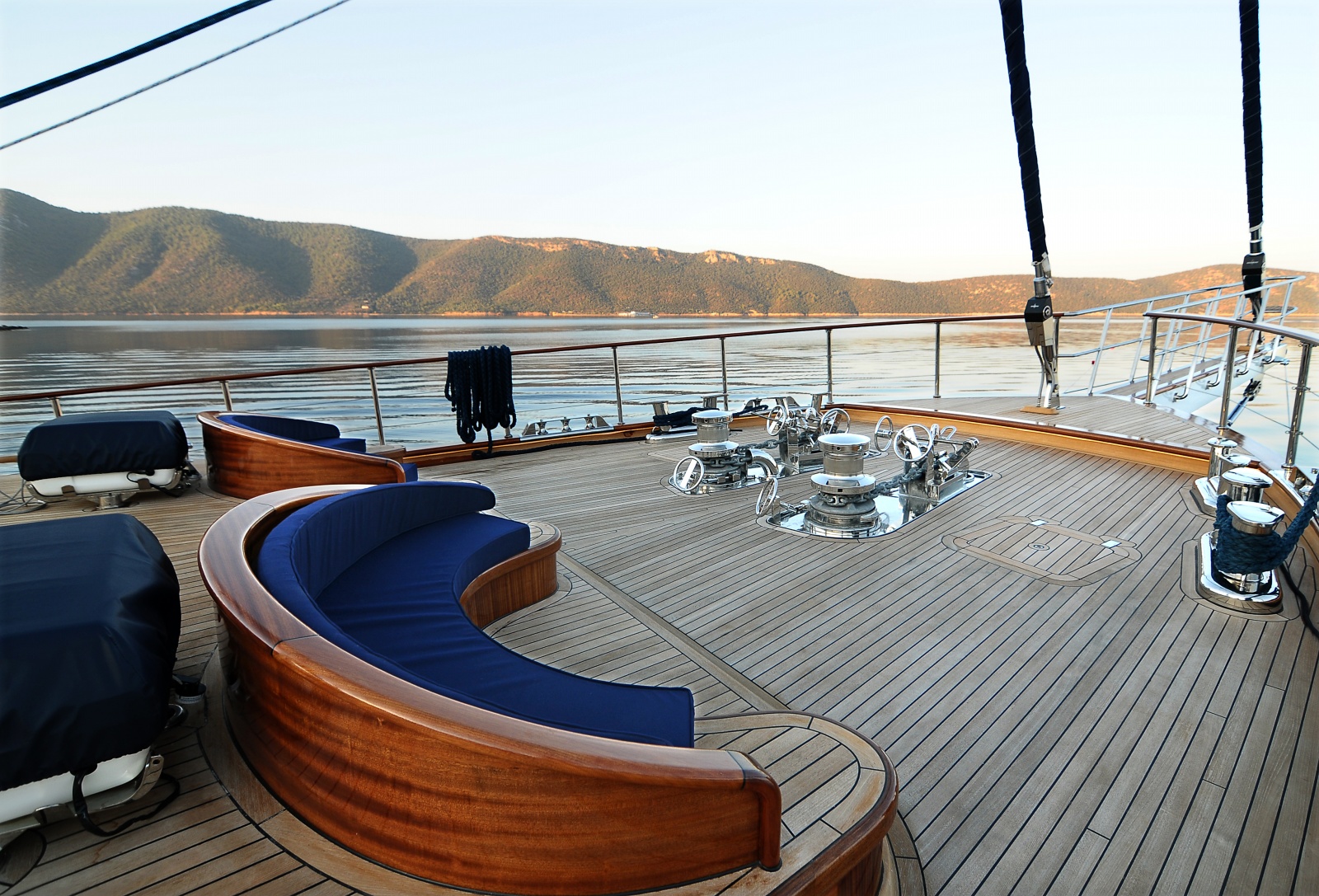

Winches |

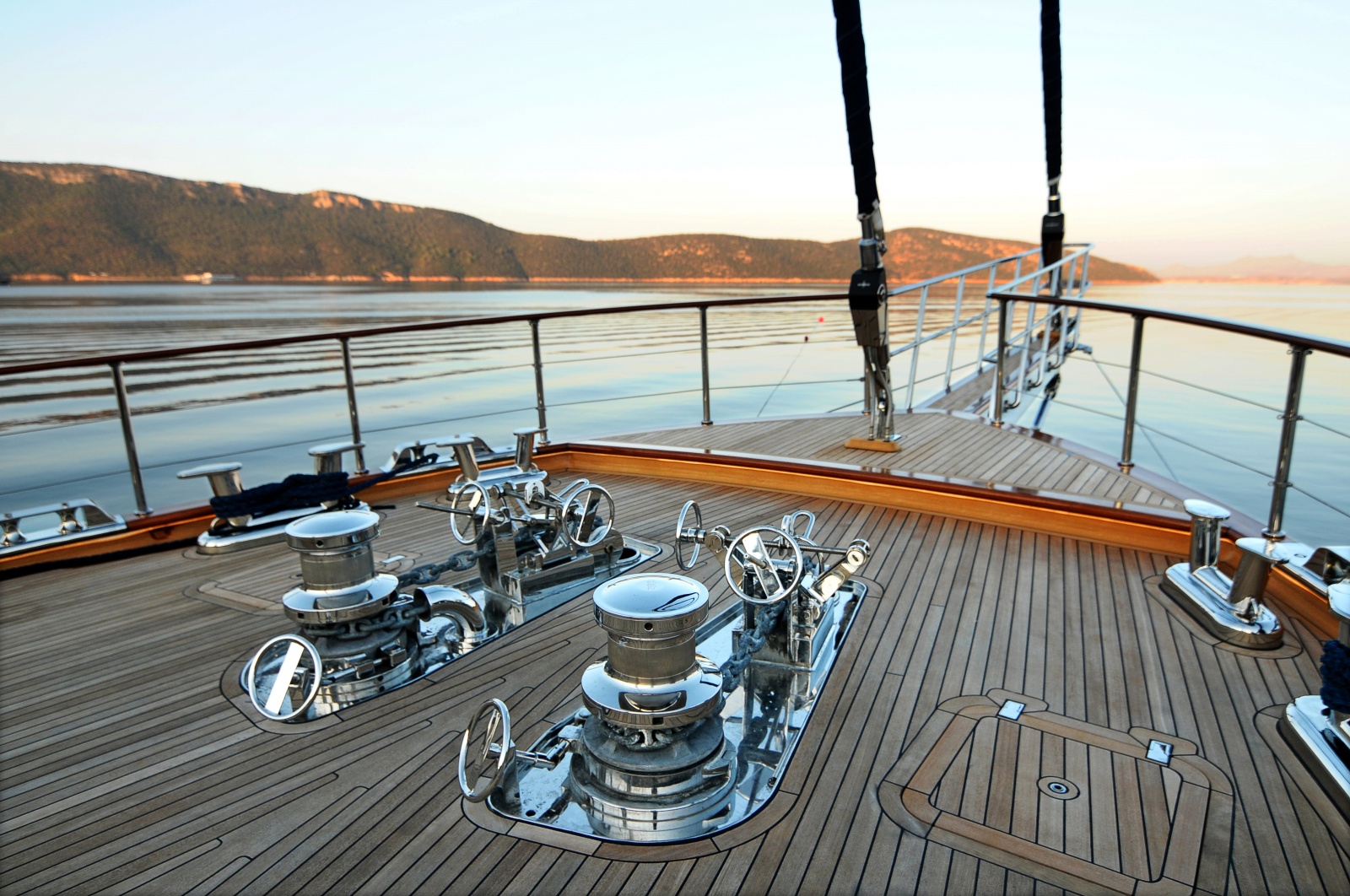

2 x Lewmar Hydraulic Captive Winches- 4 x Lewmar Hydraulic Masr Winches- 3 x Lewmar Hydraulic Mizzen Winches- 1 x Lewmar Manual Mizzen Winches- 2 x Lewmar Hydraulic Captans- 2 x Reckmann Furling Winches- |
|
Anchors |
|
Leisure Equipment |

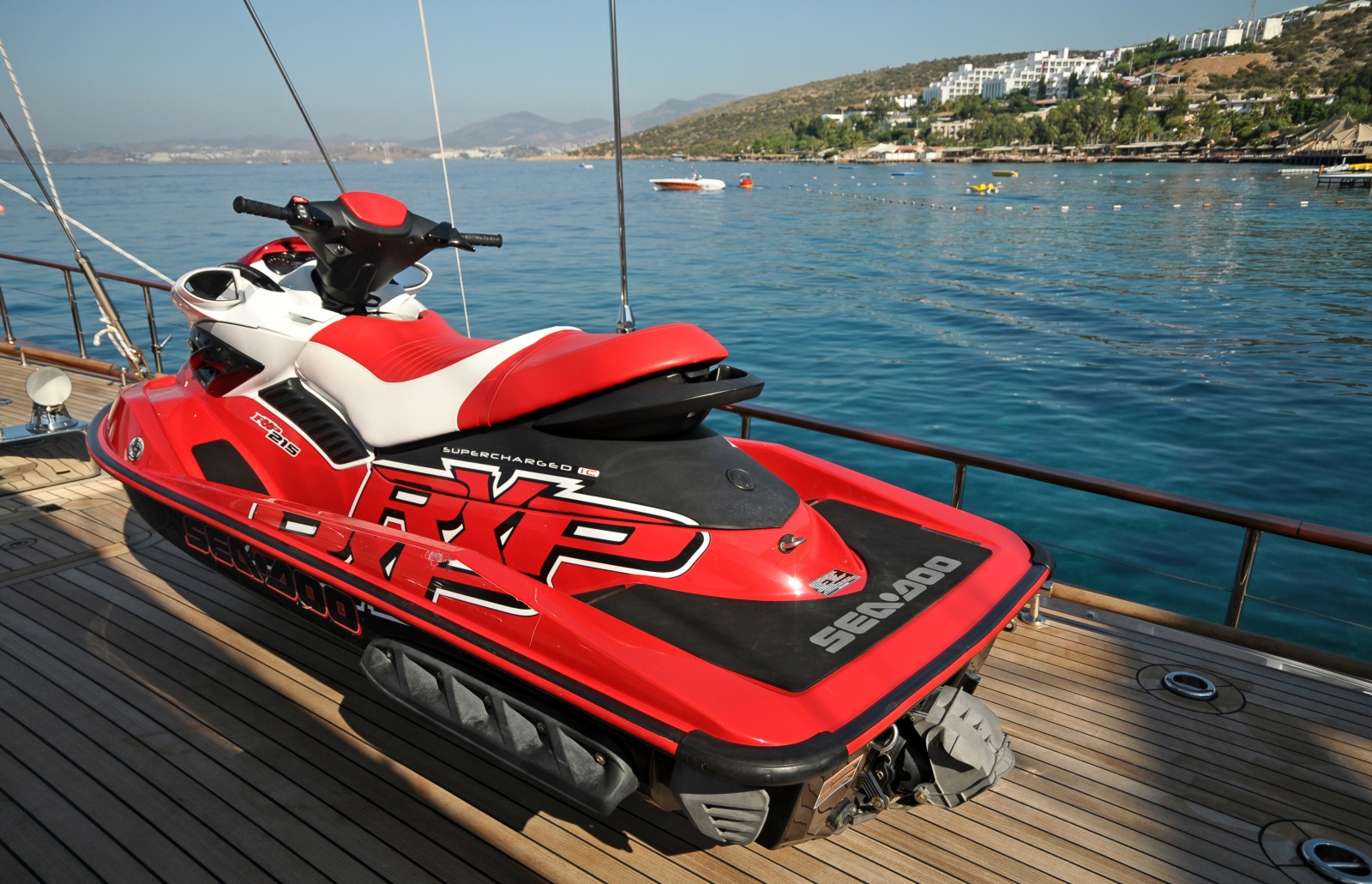

5 HP Sea Bob Dive scooter,- 250 hp Sea-doo Jet Ski |
D&S2 |
|
|
D&S3 |
|
Pasarelle |
|
Others |
|

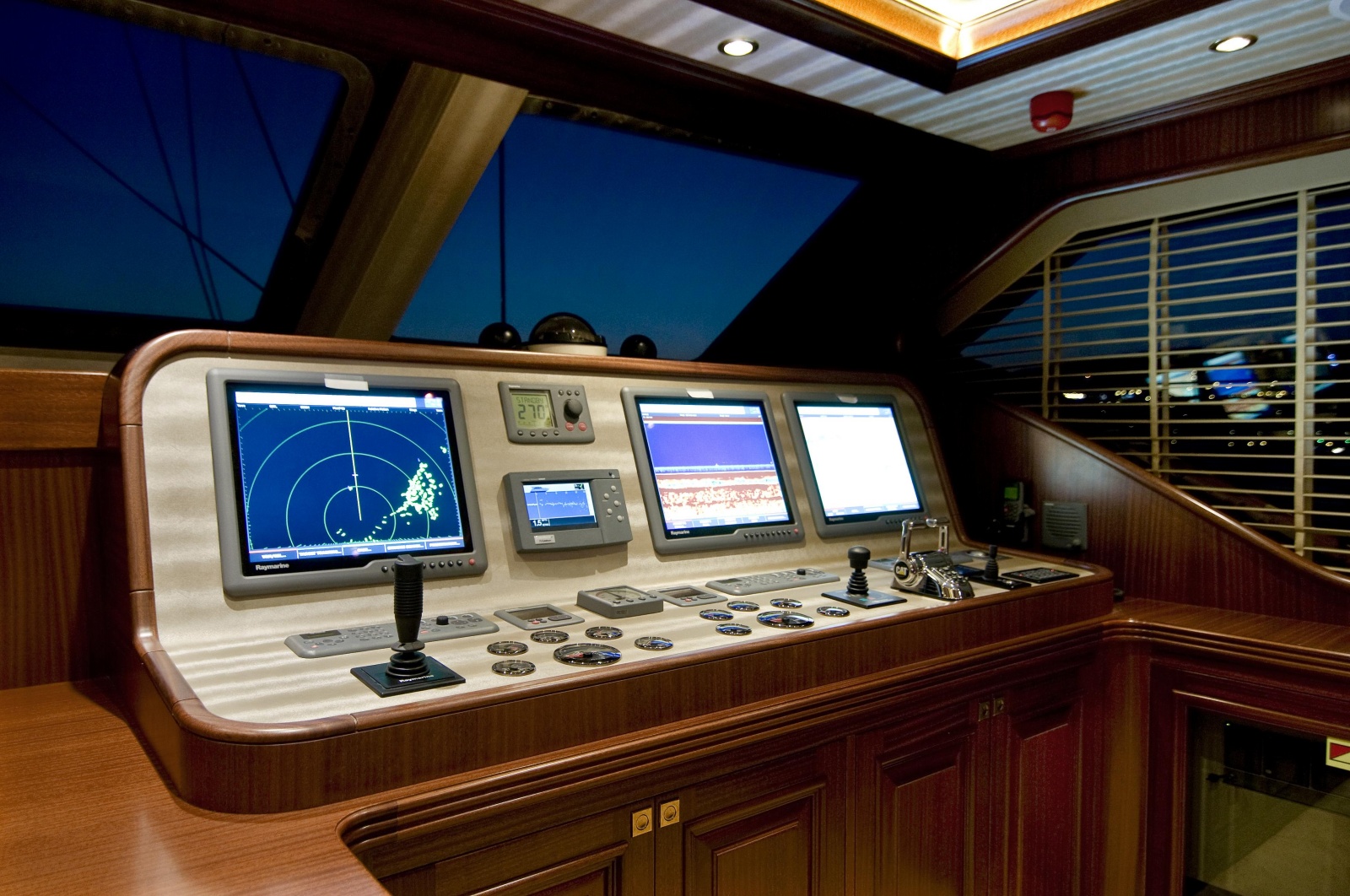

Navigation & Electronics
|
Log |
|
GPS |
2 x Raystar 125 |
Depth Sounder |
G DSM 300 depth |
|
Chart Plotter |
|
Compass |
Raymarine ST60Wind Rudder Compass System |
TV/Stereo |
Philips (In All Cabins)- Apple TV (In Saloon) |
|
Wind Instrument |
|
Wind Generator |
|
Auto Pilot |
Raymarine ST 60 |
|
Solar Panels |
|
VHF |
Ray 240 EU |
Navtex |
Fruno |
|
SSB |
|
Radar |
4 kw HD Digital 6ft- 12 kw Super HD Digital 4ft |
Satcom |
|
|
GSM |
|
Music System |
Yes |
Electricity |
|
|
Hours of A/C Use |
|
N&E1 |
|
N&E2 |
|
|
N&E3 |
|

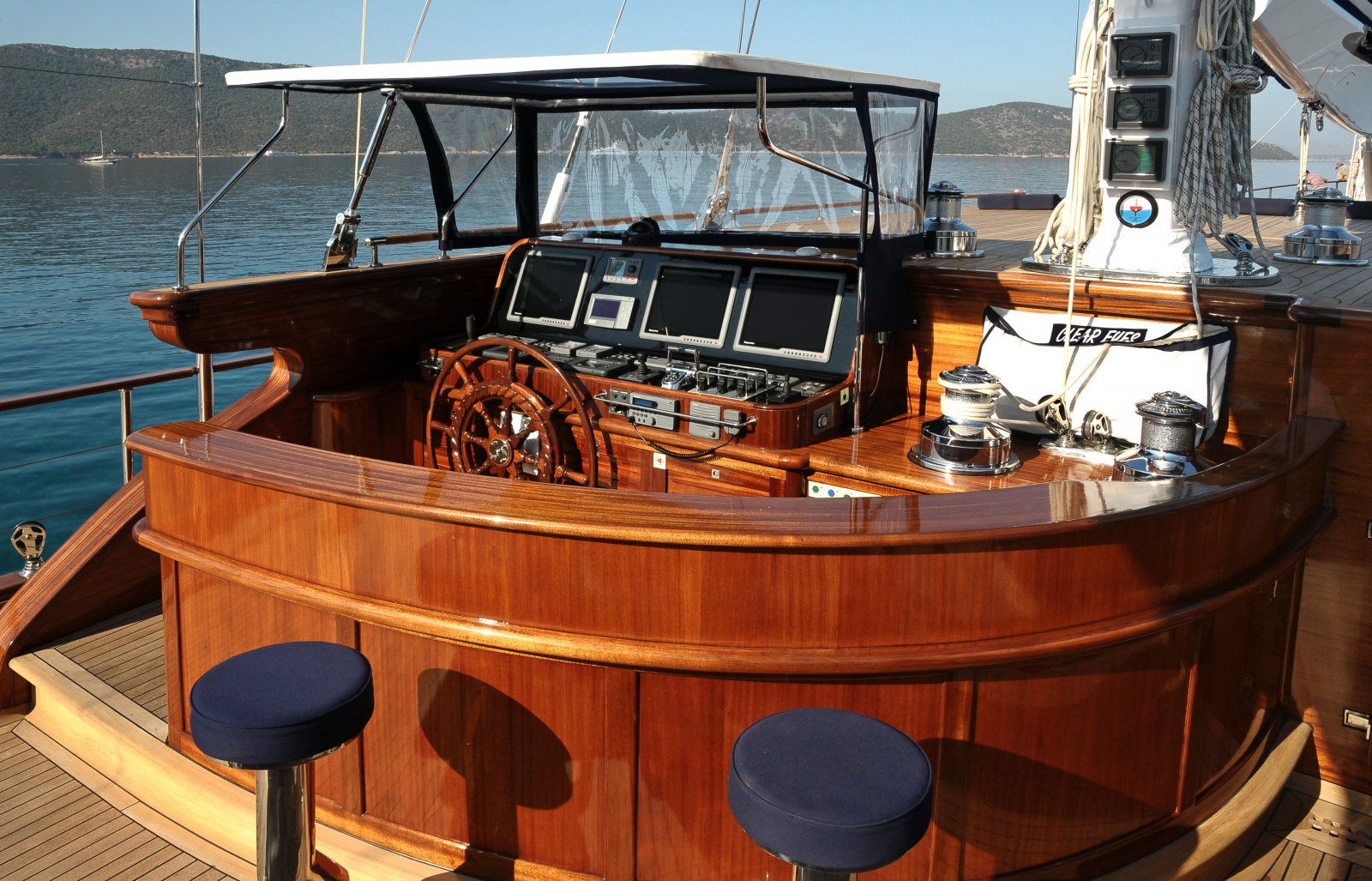

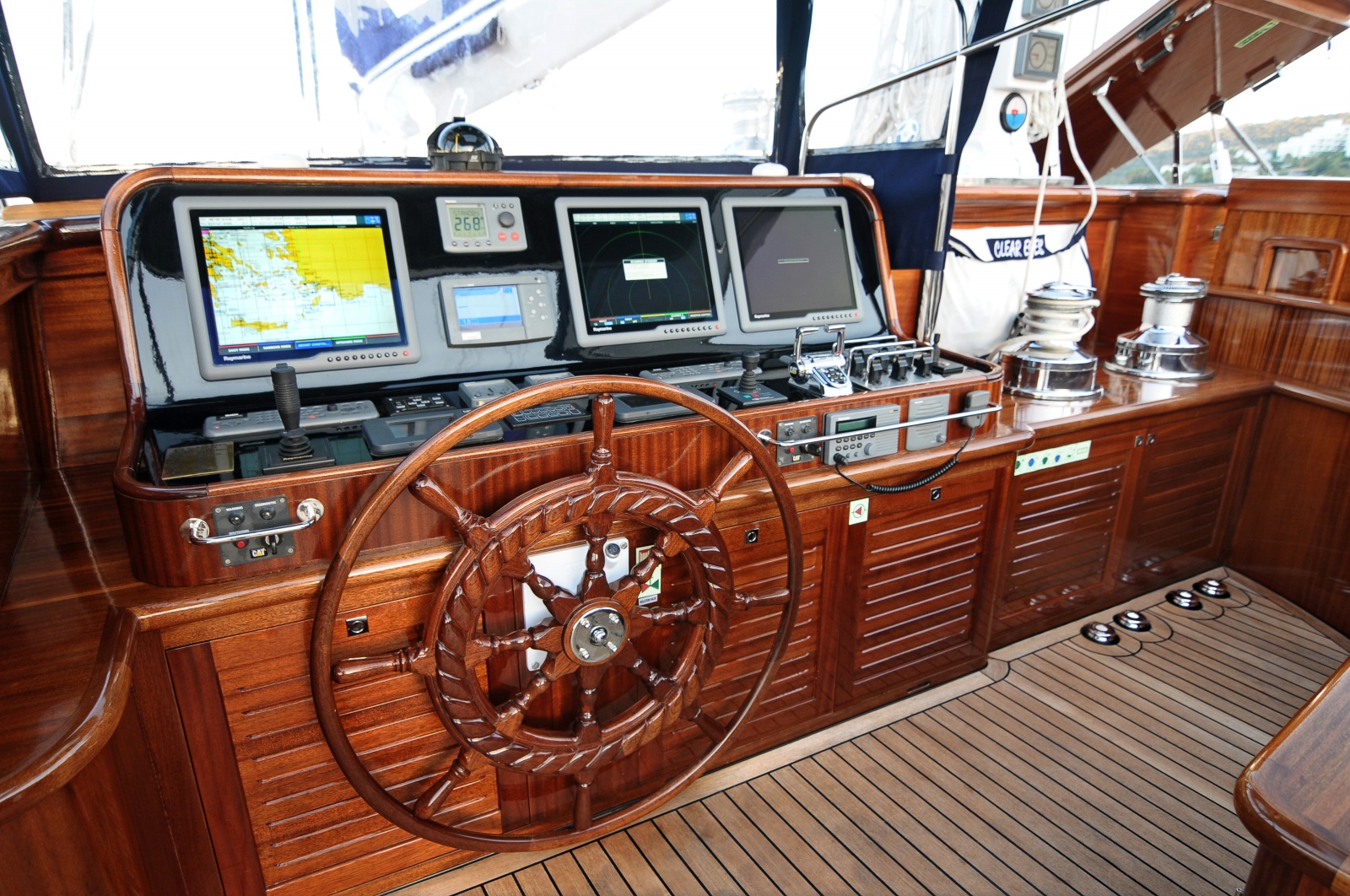

Navigation Panel |
|
Instrument Panel |
|
|
Fish Finder |
|
Epirb |
|
AIS |
Comar B Class |
|
Echo Sounder |
|
Speed Indicator |
|
Loud Hailer |
|
|
Other |
|

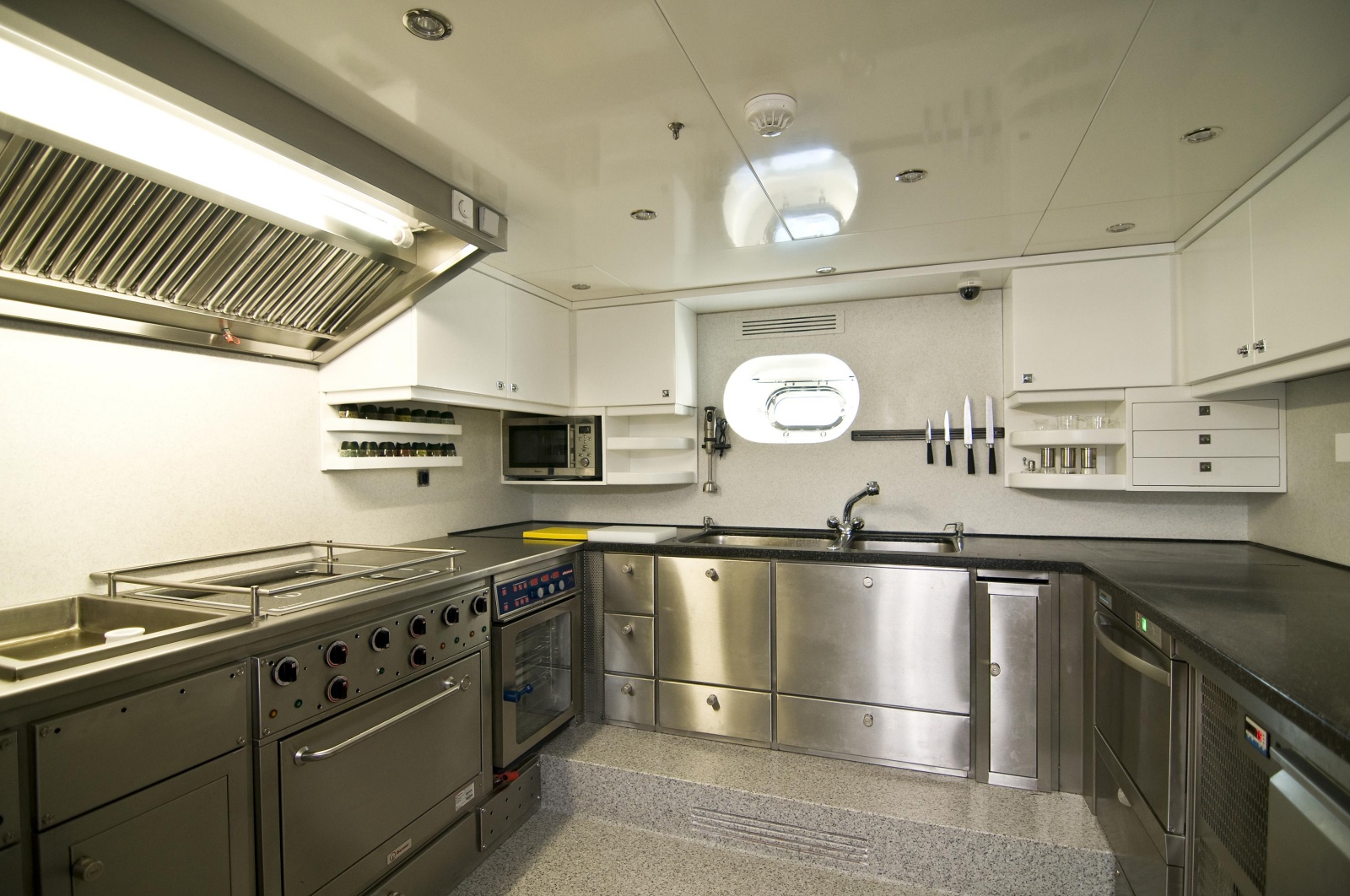

Galley
|
Cooker |
Yes ( Berner Owen with cook top) |
Hob/Stove |
Yes |
Refrigerator |
10 x L size- 4 x S size- 4 x 1600 lt Fridge- 2 x 500 Bottles Wİne Cooling |
|
Deep Freezer |
2 x 700 lt |
Microwave |
Yes |
Ice Maker |
Yes |
|
Washing Mach. |
2 x Miele + 2 x Dryer |
Dish Washer |
Yes ( Winterhalter ) |
Others |
Espresso Mach. + Boiler- Bread Maker- Ice Cream Maker- Steam Cooker |
|
G2 |
|
G3 |
|
Accommodation
|
Cabin/Berths |
5/10 |

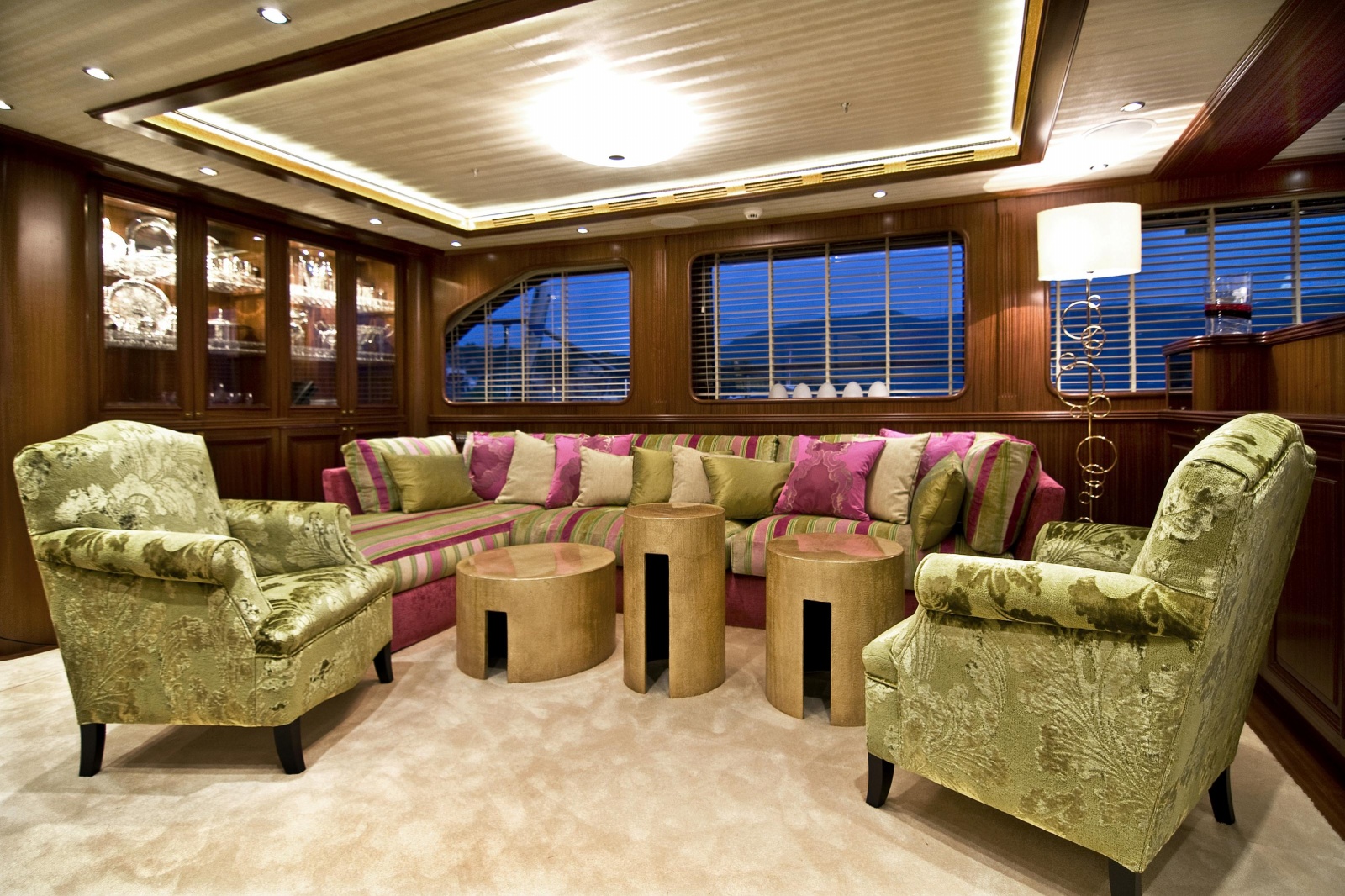

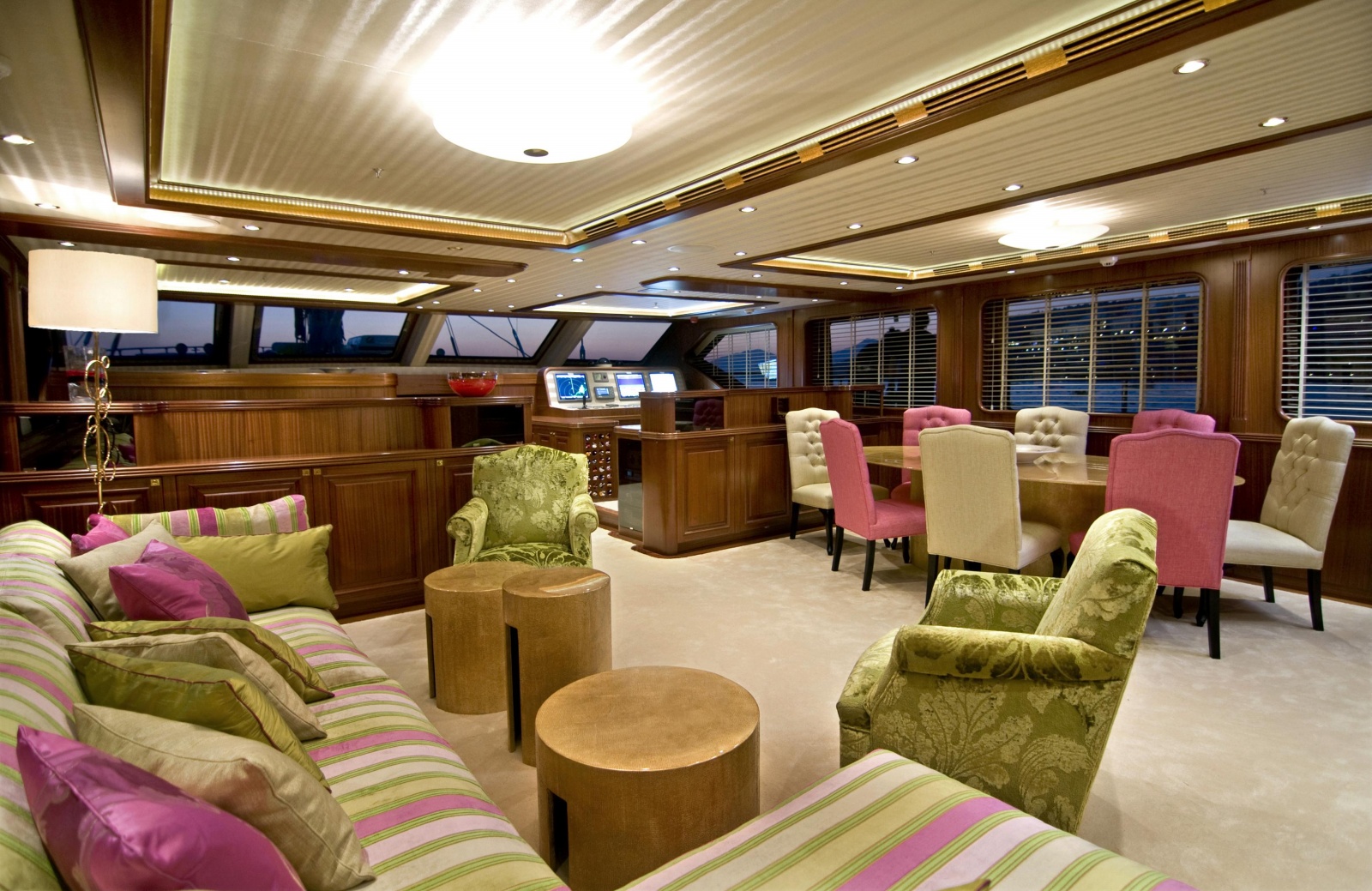

Saloon |
1 Cetral Saloon (Dining area-Living area+Apple TV) |
Bathroom |
In All Cabins |
|
Crew Quarters |
4 x Crew cabins (For 8 Pax) 2 x Bathroom |

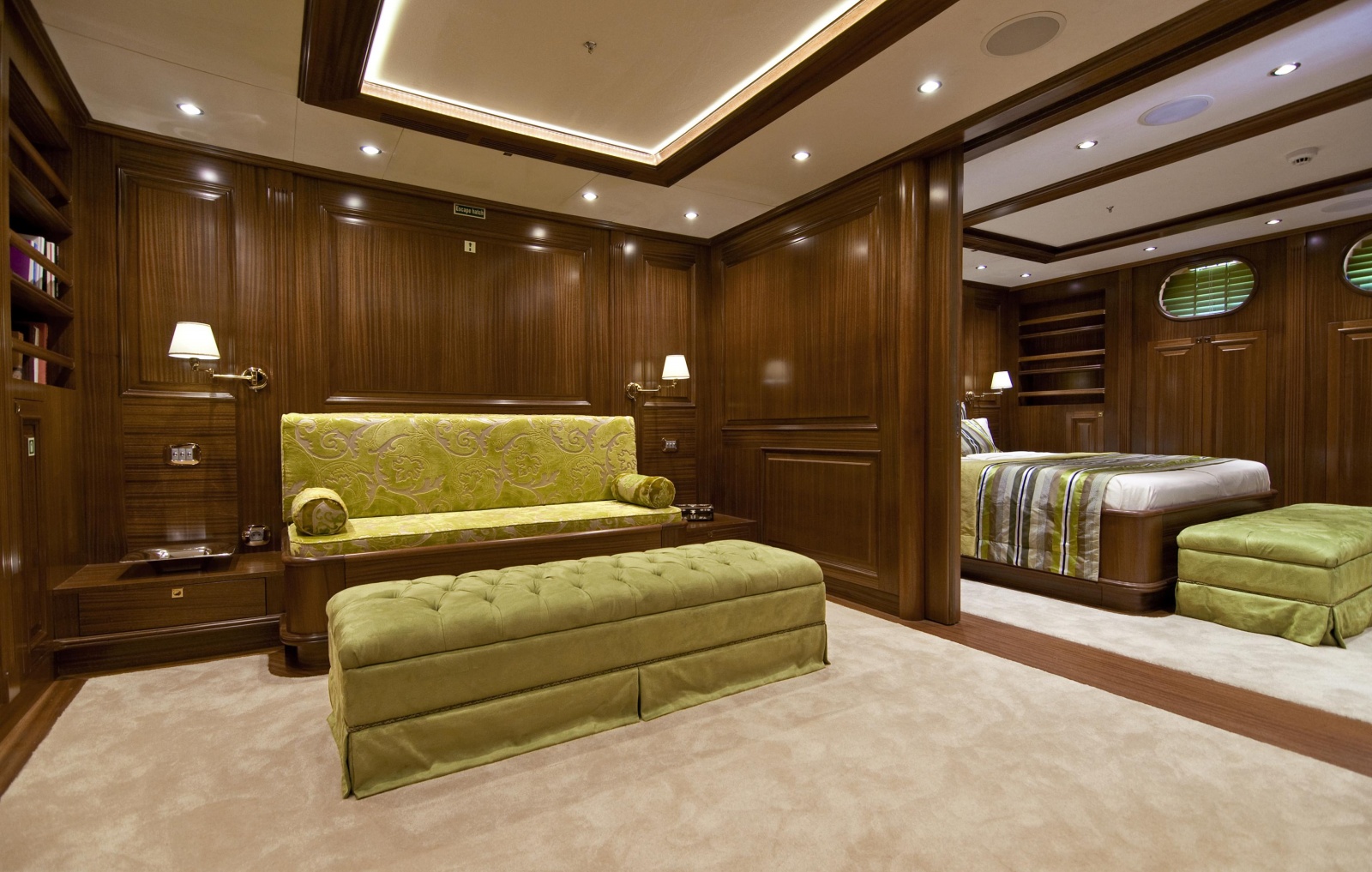

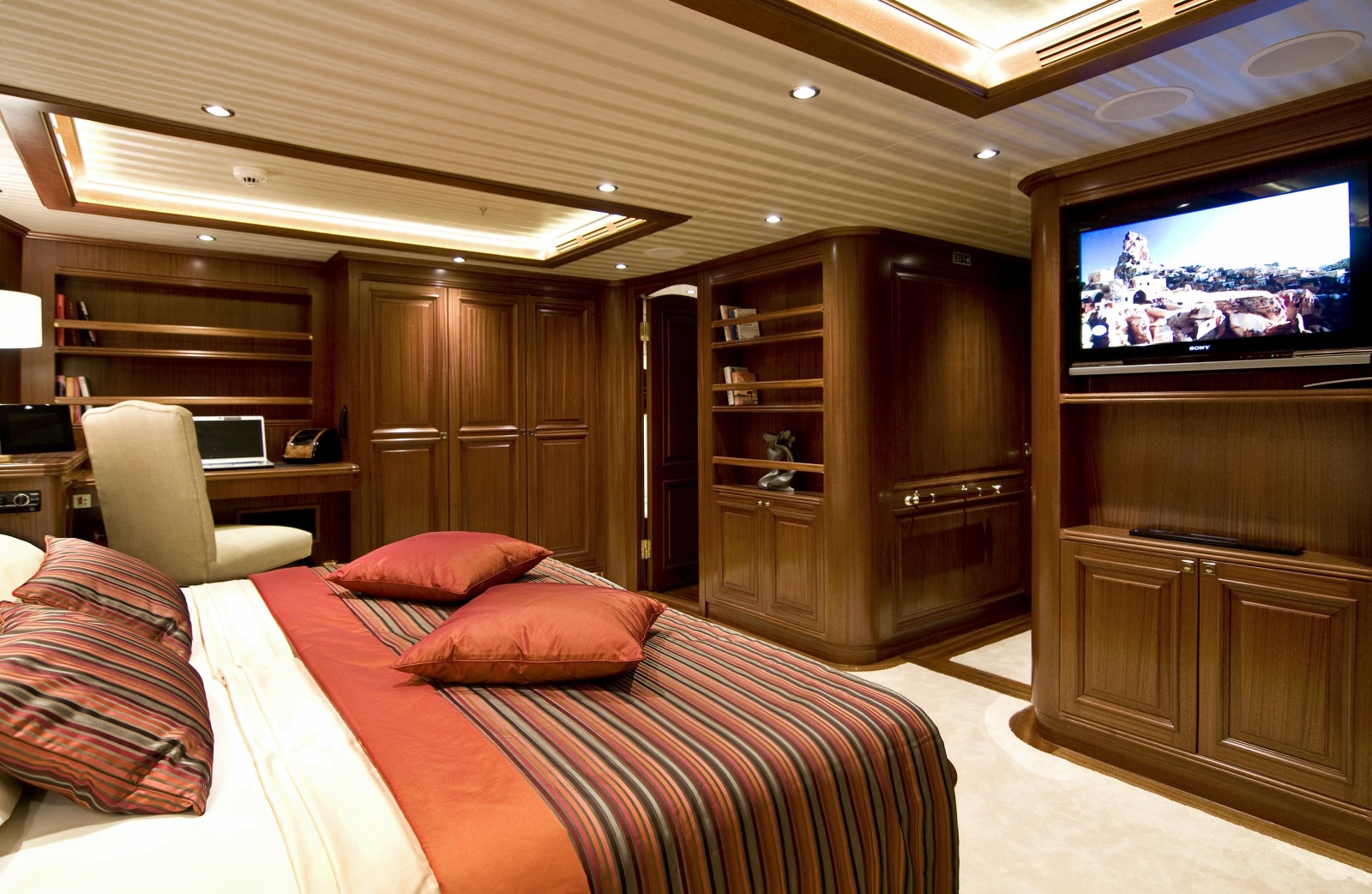

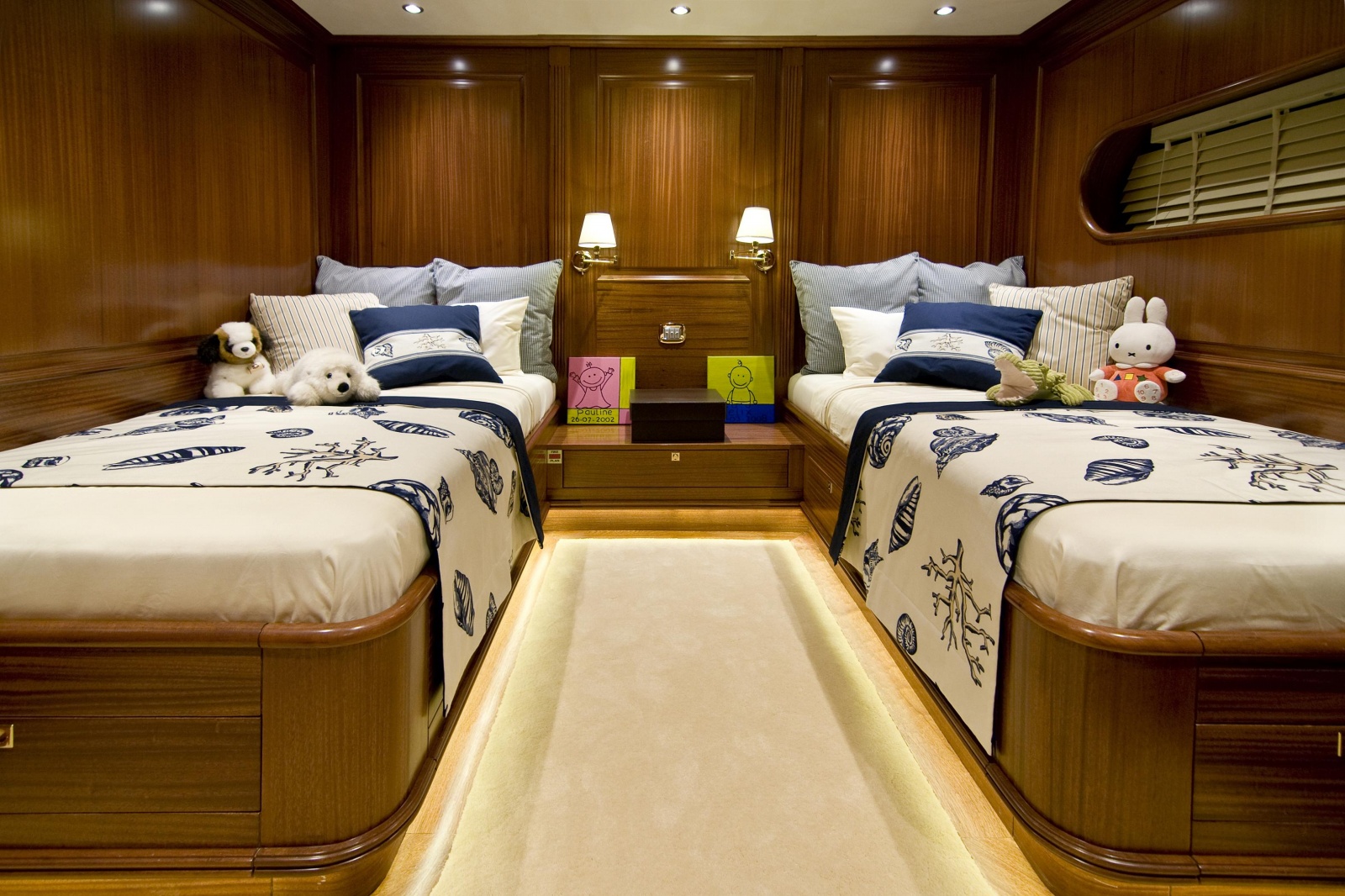

Cabins |

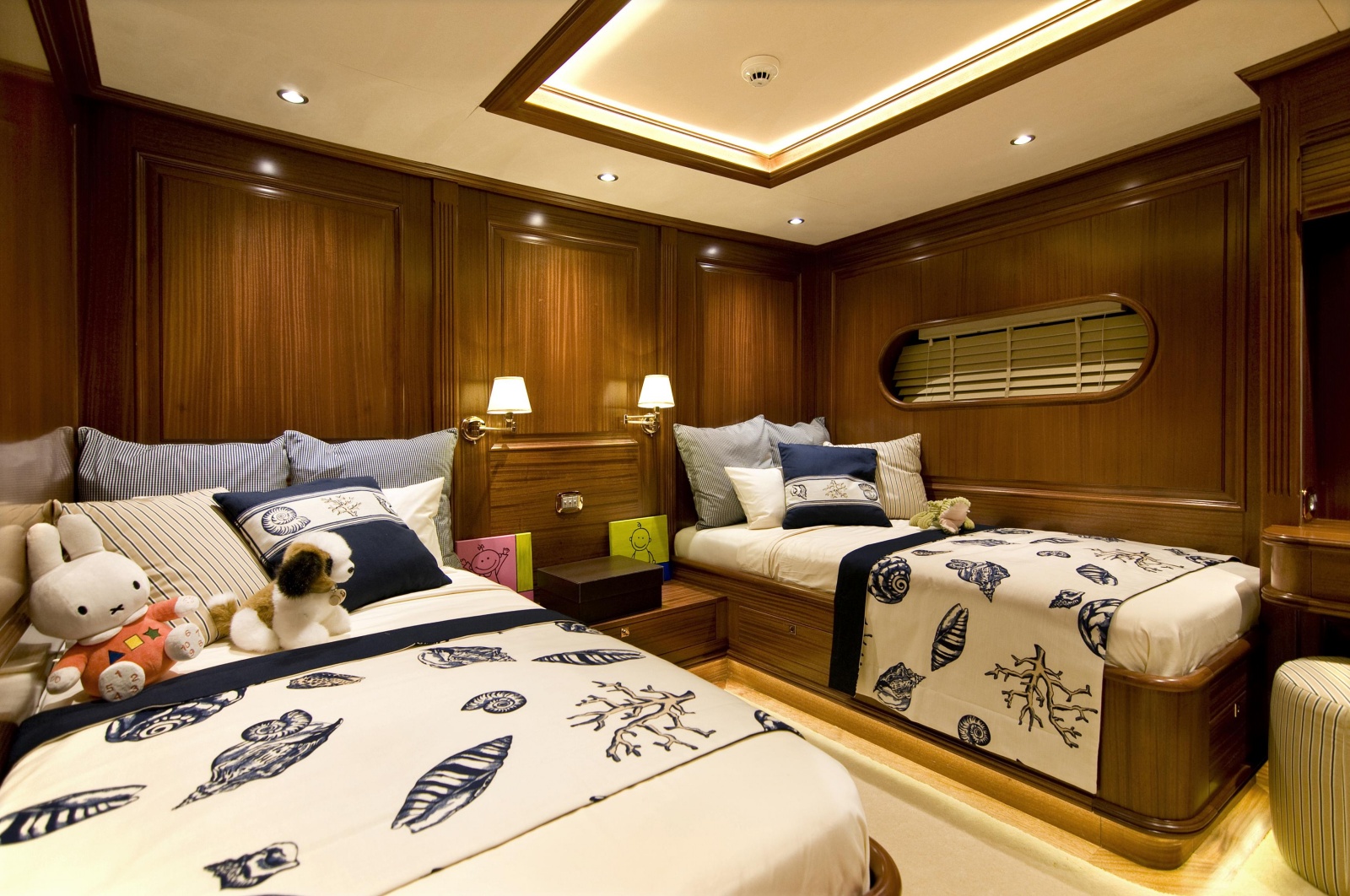

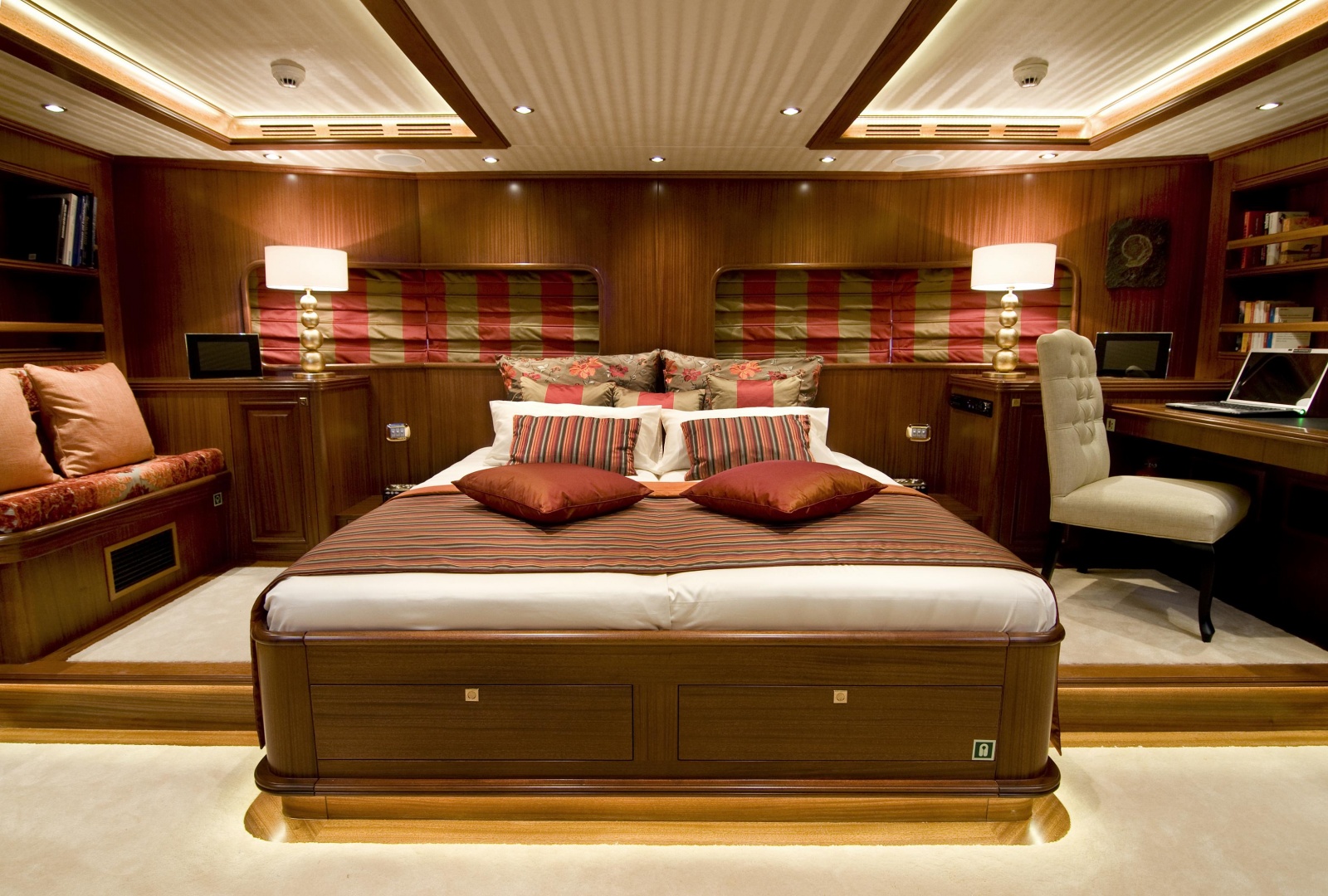

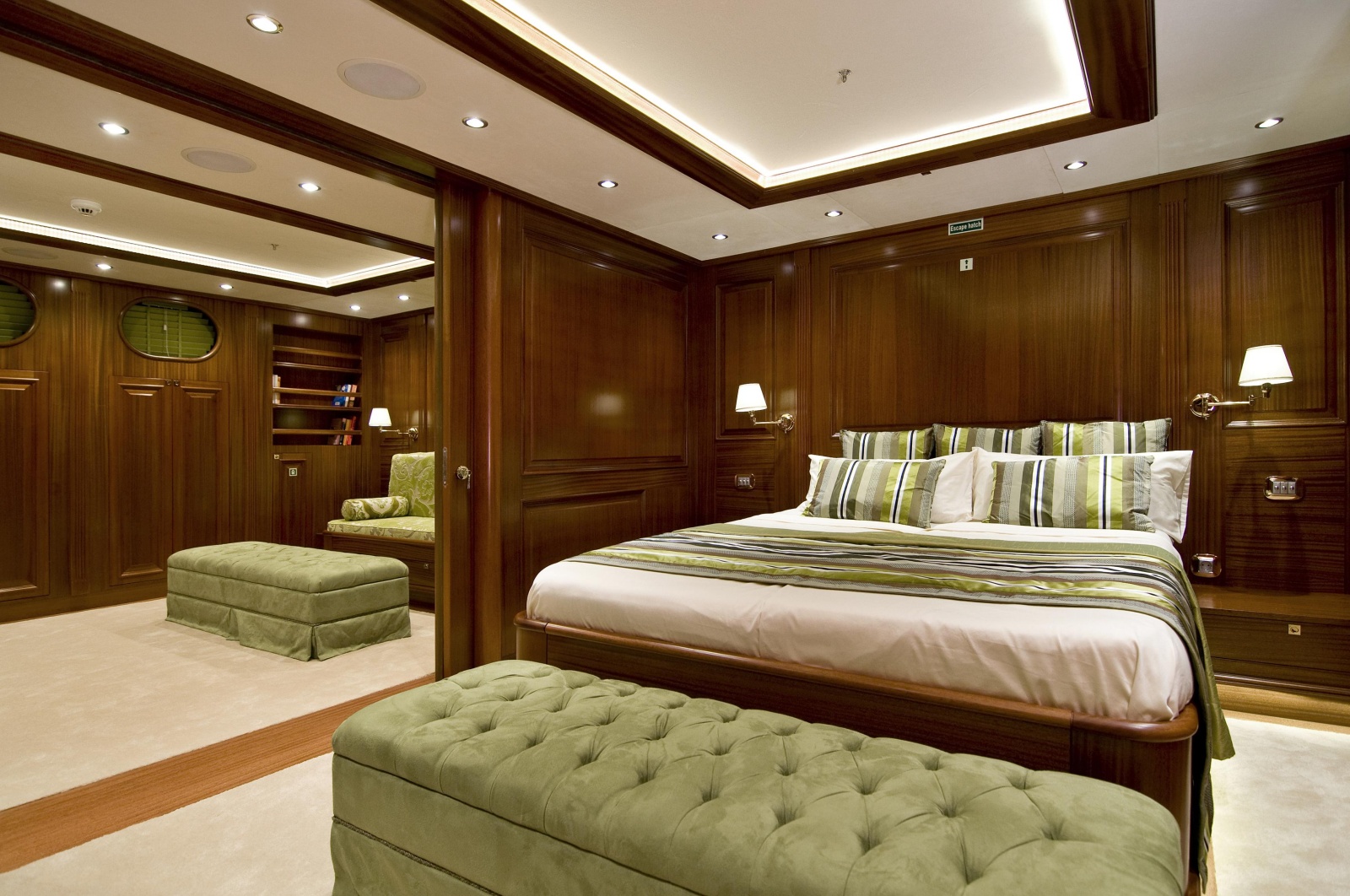

3 x Aft Master Cabins Ensuite 1 x Mid Dbl Guest Cabin 1 x Mid Twin Guest Cabin |
Toilet Type |
Vacuum Type Evac |
|
Crew Accomm. |
|
Others |
|
AC2 |
|
|
AC3 |
|

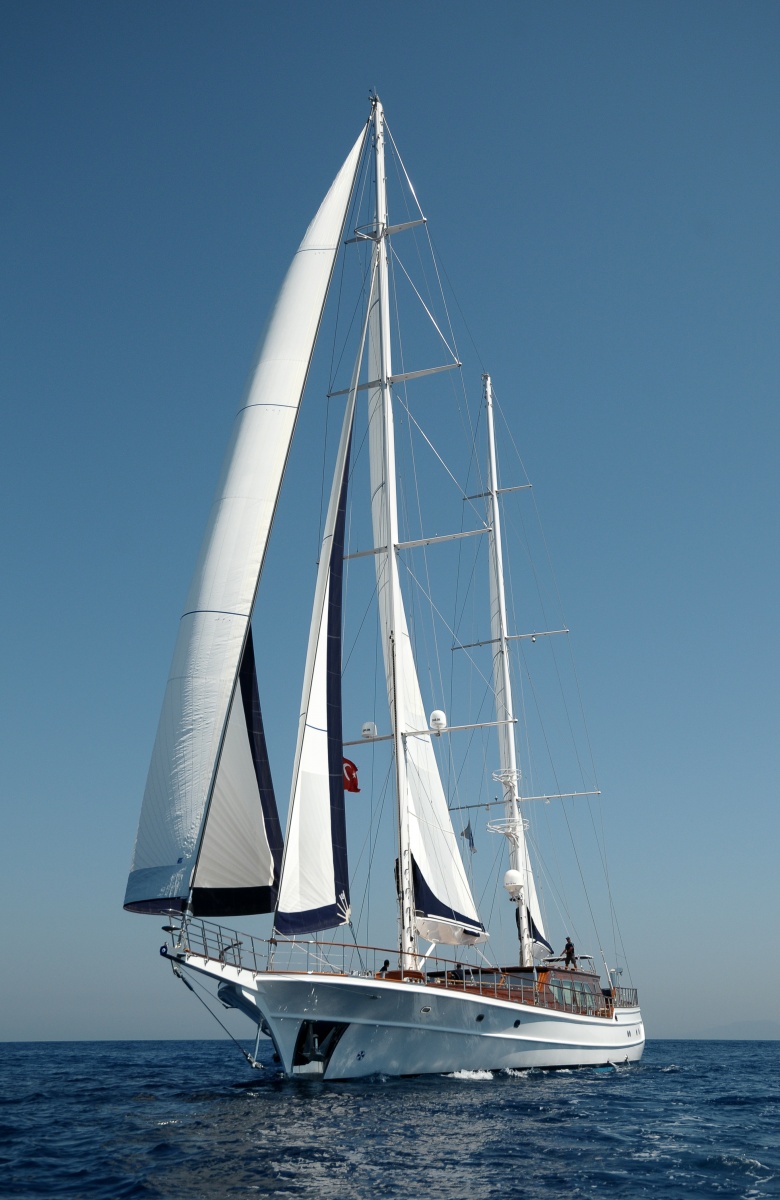

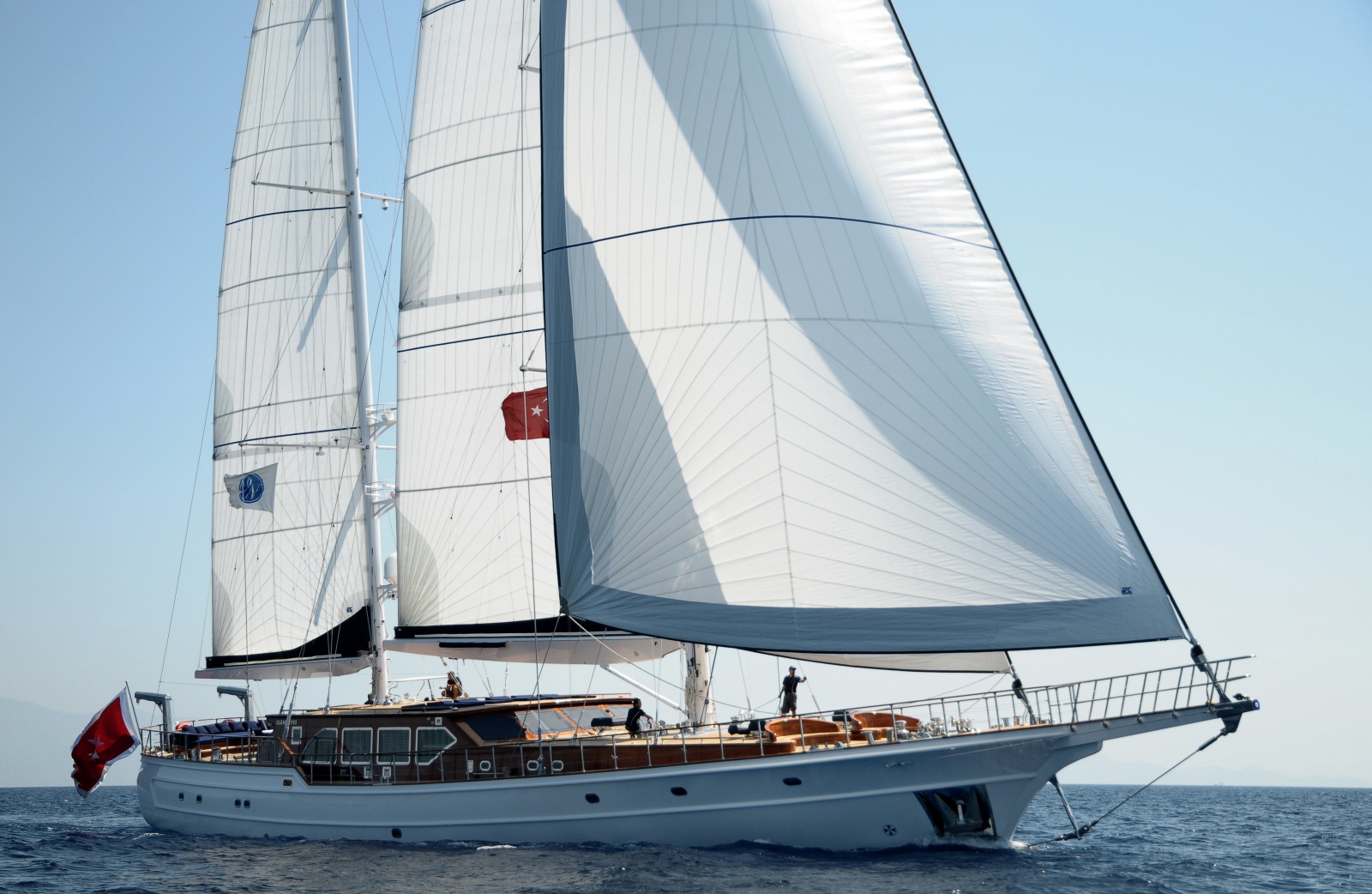

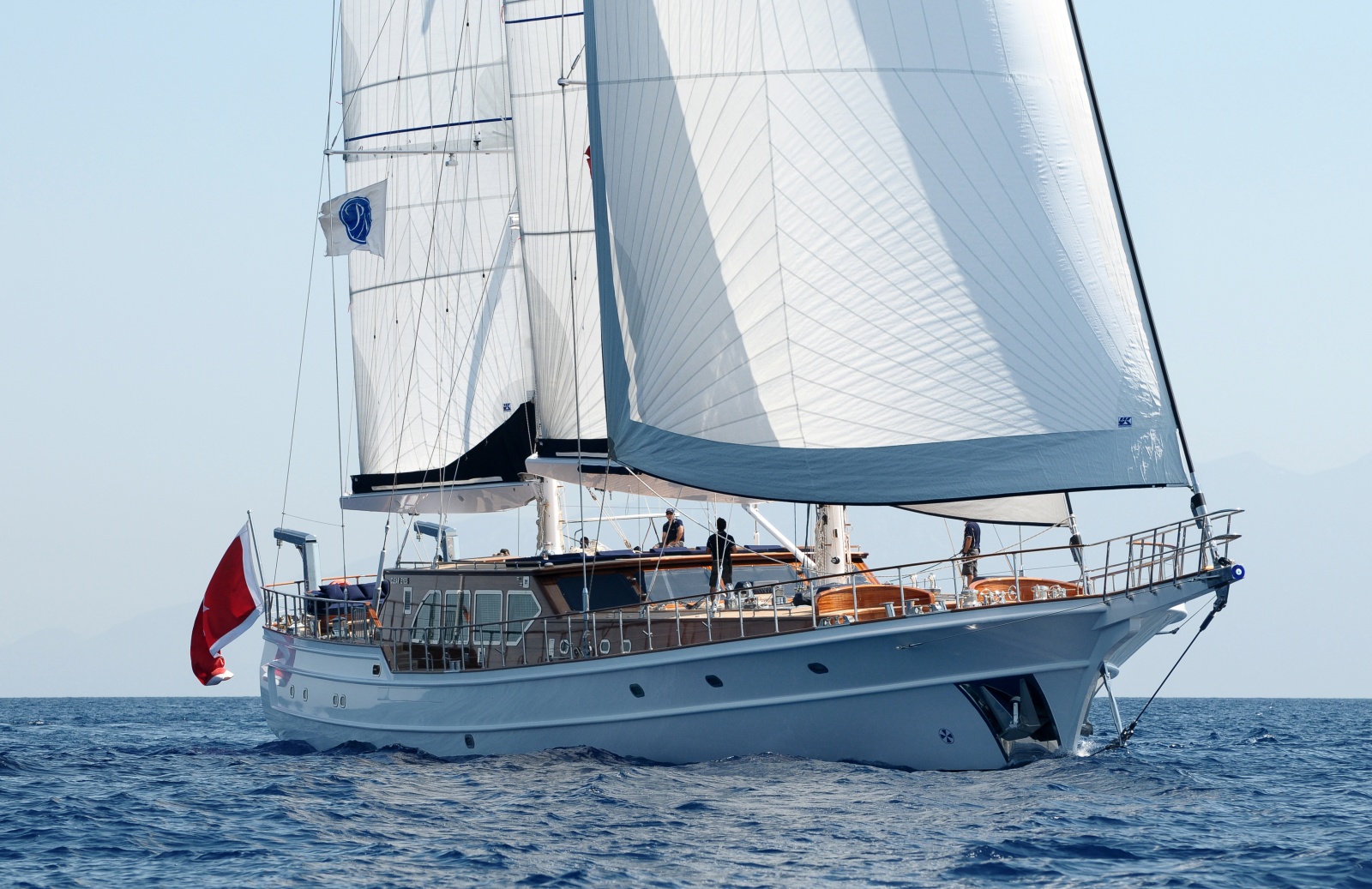

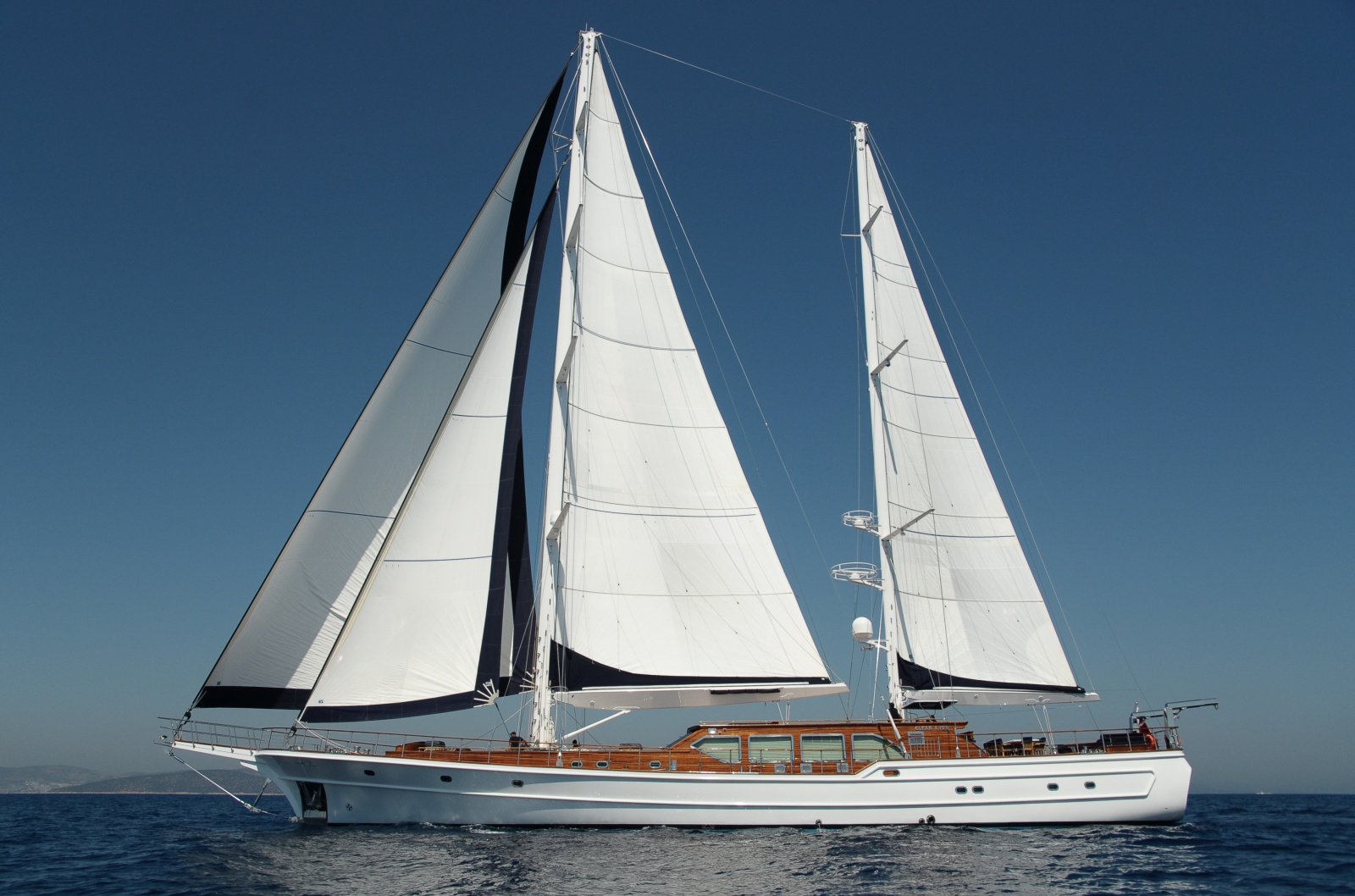

Sails
|
Sails |
Sails : UK-Halsey- Asymmetric Balloon : 712 sqm- Genoa Sail : 296sqm- Stay Sail : 157sqm- Main Sail : 227sqm - Mizzen Sail : 130 sqm- Hydra-Net Radial Cut (spectra) OFF Shore Cruising Sails- |
Riggings |
Formula Marine Nitronic 50 Rod Standing Rigging |
Listed Sail Area |
|
|
Main Sail |
|
Mast & Spars |
|
Reefing |
|
|
Furling System |
|
Standing Rigging |
|
Spinnaker Equipment |
|
|
Others |
|
