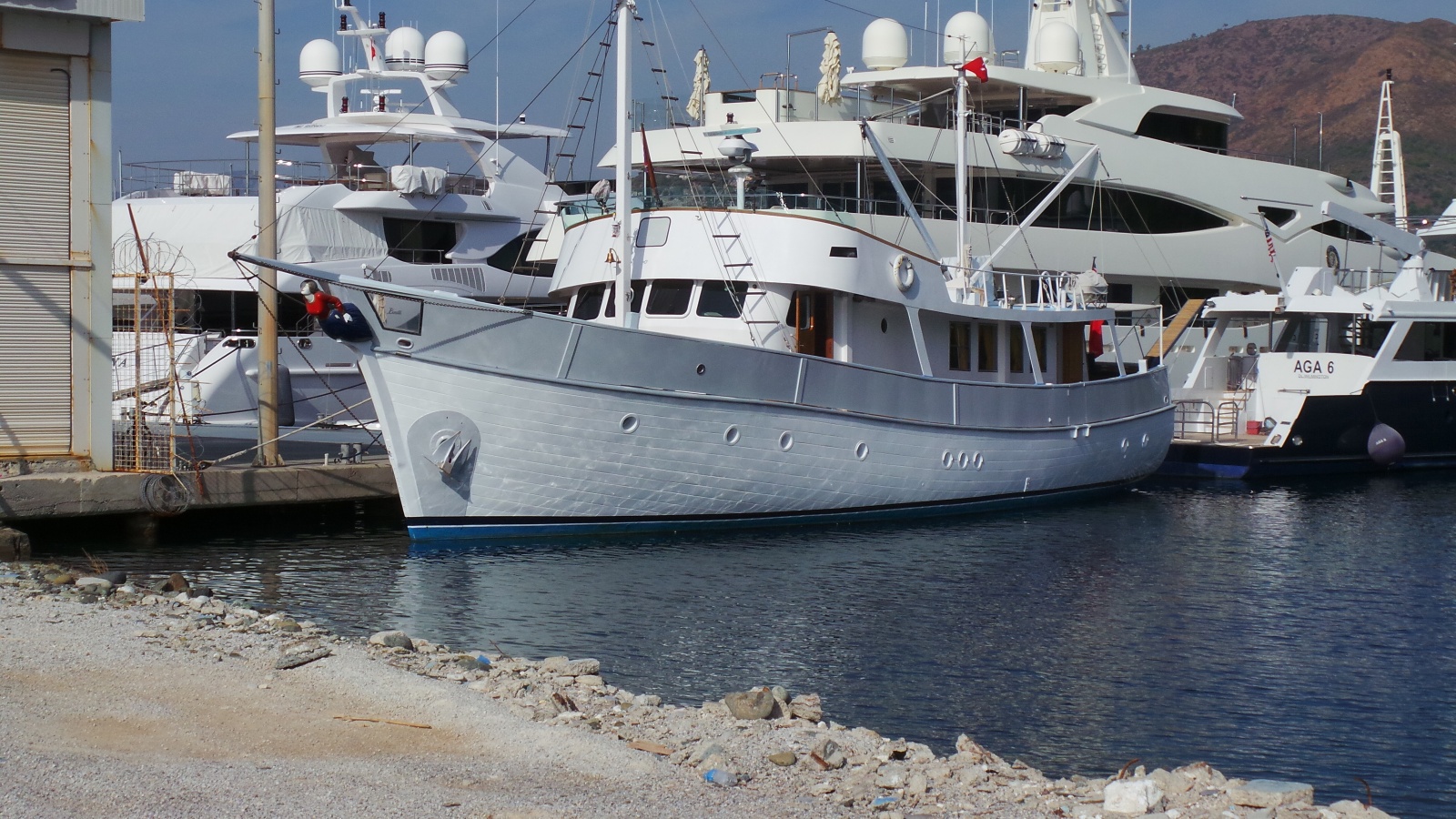

MC10433 – A B DJUPVIKS-SWEDEN TRADITIONAL WOODEN GENTLEMEN YACHT
MC10433
| 490000 | £ |
|---|
| Type | Motor Yacht |
|---|---|
|
Length Overall (LOA) |
23.00 m |
|
Beam |
6.47 m |
|
Draft |
3.04 m |
|
Built Year |
19680715 |
|
Flag |
British |
|
Hull Material |
|
|
Deck Material |
|
|
Notes |
5 cubic meters pf bottom body plankings were replaced with French Oak wood in 2016
21 pieces of rib frames on both side decks were replaced in 2016 and also the rib frames on stern post were replaced in 2014 |
Specifications
|
Tonnage / Displacement |
72,18 tons |
Design |
|
Deck |
Teak Deck (Replaced in 2000) thickness is 2,5 cm |
|
Internal Design |
|
Keel |
Long Keel |
Hull Type |
|
|
Weight |
|
L.W.L. |
|
Other |
|
Tankage
|
Fuel Capacity |
16000 lt (Mild Steel) |
Water Capacity |
2 x 4000 lt (Stainless Steel) |
Holding Tanks |
150 lt (Polyester) |
|
Other |
250 lt (Polyurethane) Replaced in 2012 |
Engine & Machinery
|
Engine Type |
VOLVO PENTA 6 CYLINDER |
Engine Power |
2 x 156 Hp |
Engine Date |
1967 |
|
No of Hours |
Thought to be around 6000 hrs |
Overhaul |
Regularly seviced |
Consumption |
45lt/hr at max speed of 10 Knts with both engines |
|
Range |
3000 nm |
Speed |
Cruising Speed 8 Knots/ Max. Speed 10 Knots |
Water Maker |
|
|
Battery Charger |
LAMARCHE CONSTAVOLT 24 VOLT/140 AMP+VETUS 12 VOLT/ 26 AMP |
Steering |
Hydraulic (Comprehensively Serviced in 2016) |
Steering |
Hydraulic (Comprehensively Serviced in 2016) |
|
Generator |
Onan 16 Kwa (Overhauled in 2006) running hours are at 11890 hrs |
Inverter |
300 Watt |
Bowthruster |
|
|
E&M1 |
|
E&M2 |
|
E&M3 |
|
|
Sternthruster |
|
Converter |
|
Propulsion/Propeller |
Shaft Drive / 3-Blade Bronze |
|
Trim Tabs |
|
Water Heater |
|
Stabilizer |
|
|
Gearbox |
|
Other |
|
Deck & Safety
|
Chain |
160 mt x 16 mm (Galvanized) |
Windlass |
Electric LOFRANS 3500 Watt (Replaced in 2008) |
Dinghy |
BOSTON WHALER 4 mt (2000) In good condition |
|
Outboard |
YAMAHA (1994) 40Hp |
Fire Exting. |
2 x 8 Kg + 3 x 6 Kg + 6 x 2 Kg (Auto in Engine Room) |
Life Raft |
|
|
Life Jacket |
Available |
Sun Awning |
Sun Awning + Winter Cover |
Winches |
|
|
Anchors |
130Kg |
Leisure Equipment |
|
D&S2 |
|
|
D&S3 |
|
Pasarelle |
|
Others |
|
Navigation & Electronics
|
Log |
RAYTHEON ST60 |
GPS |
RAYMARINE RN300 |
Depth Sounder |
RAYTHEON ST60 |
|
Chart Plotter |
RAYMARINE PATHFINDER SL72 |
Compass |
MOORE |
TV/Stereo |
|
|
Wind Instrument |
|
Wind Generator |
|
Auto Pilot |
Available (Needs replacing) |
|
Solar Panels |
|
VHF |
|
Navtex |
|
|
SSB |
|
Radar |
RAYMARINE PATHFINDER SL72 |
Satcom |
|
|
GSM |
|
Music System |
SONY CD & STEREO PLAYER with Speakers |
Electricity |
|
|
Hours of A/C Use |
|
N&E1 |
|
N&E2 |
|
|
N&E3 |
|
Navigation Panel |
|
Instrument Panel |
|
|
Fish Finder |
|
Epirb |
|
AIS |
|
|
Echo Sounder |
|
Speed Indicator |
|
Loud Hailer |
|
|
Other |
|
Galley
|
Cooker |
SIEMENS |
Hob/Stove |
SIEMENS |
Refrigerator |
COMMERCIAL TYPE with seawater cooling |
|
Deep Freezer |
UĞUR + ALTUS make Freezer |
Microwave |
PANASONIC |
Ice Maker |
|
|
Washing Mach. |
BOSCH |
Dish Washer |
|
Others |
|
|
G2 |
|
G3 |
|
Accommodation
|
Cabin/Berths |
4/8 |
Saloon |
Square shaped vast saloon with sofas |
Bathroom |
4 + 1 |
|
Crew Quarters |
|
Cabins |
2 x Fwd Bunk Cabins Ensuite 2 x Aft Double Cabins Ensuite 1x Fwd Twin Crew Cabin Ensuite |
Toilet Type |
All with Electric Vacuum Type |
|
Crew Accomm. |
|
Others |
|
AC2 |
|
|
AC3 |
|
Sails
|
Sails |
|
Riggings |
|
Listed Sail Area |
|
|
Main Sail |
|
Mast & Spars |
|
Reefing |
|
|
Furling System |
|
Standing Rigging |
|
Spinnaker Equipment |
|
|
Others |
|
